DALSA OR-P2E0-CV000 acquisition card

DALSA OR-P2E0-CV000 acquisition card

 Introduction

DALSA OR-P2E0-CV000 acquisition card

1. Equipped with PCIe high-speed bus, DALSA OR-P2E0-CV000 can stably handle massive image data transmission from industrial cameras

2. Built in hardware level trigger port, supports precise synchronization and capture of multiple devices, with small timing errors

3. Integrated programmable FPGA unit, DALSA OR-P2E0-CV000 can perform image cropping and noise reduction preprocessing on site

4. Strong compatibility, compatible with mainstream linear, planar black and white, and color industrial cameras

5. The hardware comes with a large capacity cache, which prevents frame loss and missing data during short-term peak periods

6. Electromagnetic shielding shell design, stable operation of DALSA OR-P2E0-CV000 acquisition under strong interference conditions in the factory

7. Support PoCXP coaxial power supply, coaxial cable simultaneously transmits data and power supply, simplifying on-site wiring

8. Intelligent bandwidth allocation regulation significantly reduces CPU usage in industrial control hosts

9. Compatible with CXP multi version protocol, new and old models of cameras can be mixed and used together

10. Capable of a wide temperature working range, with sustainable and uninterrupted operation in high and low temperature workshop environments

11. Equipped with official mature SDK, it is convenient and efficient to integrate with visual software such as Halcon and OpenCV

12. Multi channel flexible combination layout, capable of mounting multiple cameras on a single card for parallel acquisition

13. Real time hardware timing control, motion tracking capture without image lag or offset

14. Low power hardware architecture, long-term full load operation with controllable temperature rise and low risk of overheating

15. Standardized control board size, conventional industrial control chassis can be directly assembled and fixed

Overall, DALSA OR-P2E0-CV000 is an industrial grade CoaXpress visual acquisition hardware that combines stability and adaptability, suitable for various high-precision industrial visual inspection scenarios.

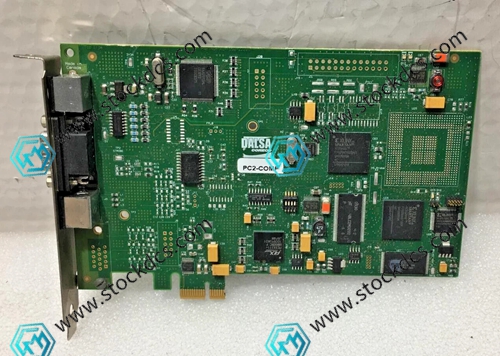

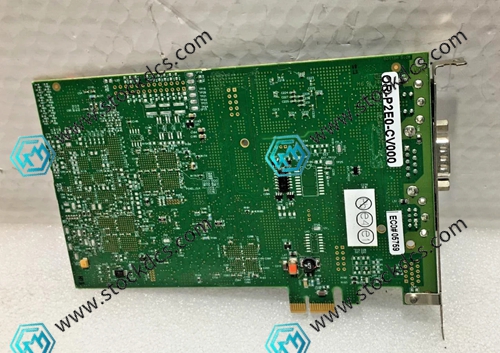

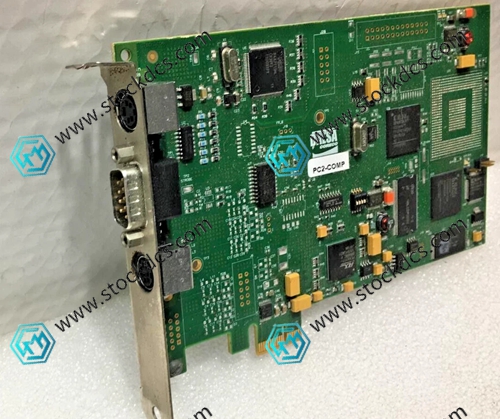

Product imag
