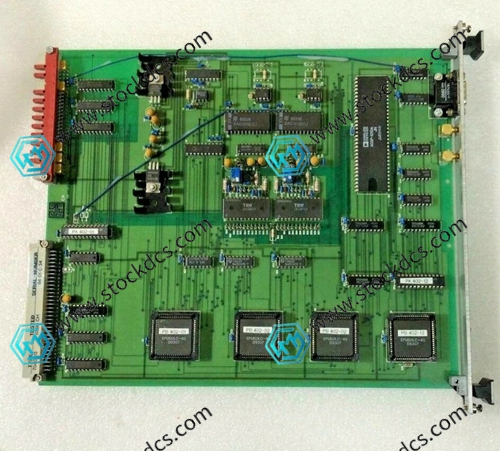

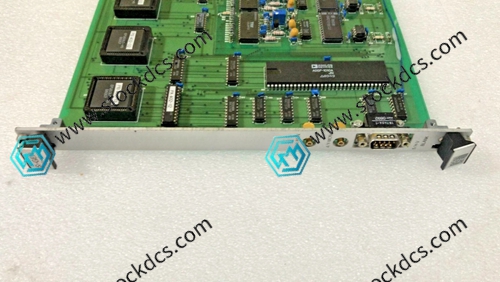

ICT 402-03 L1 scanning board

1. 402-03 L1 is used for semiconductor detection equipment to generate scanning drive signals

2. High precision signal output ensures the synchronization of scanning unit motion

3. Multi layer PCB wiring reduces signal interference and waveform distortion

4. Built in signal conditioning circuit, stable output of pulse commands

5. Equipped with status indicator lights, visually view the operating status of 402-03 L1

6. Multiple signal channels for synchronous transmission of scanning control and feedback signals

7. The circuit comes with built-in protection to resist on-site surges and electromagnetic interference

8. Reserve test points for convenient fault signal detection and maintenance

9. Standard connector, quick docking scanning actuator

10. Optimize grounding layout to reduce the impact of circuit noise on accuracy

11. Industrial grade components that support long-term continuous operation of equipment

12. The board is temperature resistant and stable, and can adapt to temperature fluctuations in equipment compartments

13. The silk screen printing of the circuit is clear, making it easy to distinguish between various signal channels

14. Modular board structure, can be replaced separately after failure

15. Bus communication interface, realizing data exchange with the main control of the whole machine

ICT 402-03 L1 scanning generation board, precision detection equipment scanning drive signal dedicated control board.
