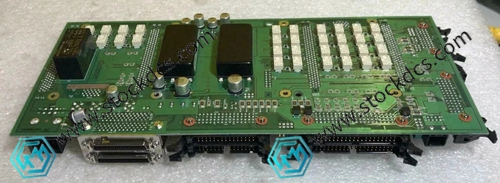

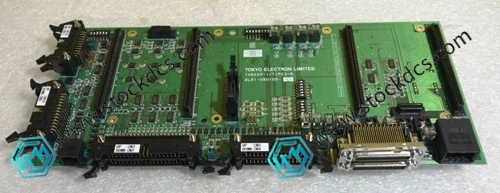

TEL 2L08-05105-11 PCB board

TEL 2L08-05105-11 PCB board

 Introduction

TEL 2L08-05105-11 PCB board

1. Compatible with TEL etching semiconductor equipment, responsible for equipment signal transmission control function

2. 2L08-05105-11 precise control of line impedance effectively reduces signal crosstalk

3. High temperature resistant substrate, suitable for long-term working temperature environment inside the machine

4. Original factory SMT components are welded and assembled, and can be directly installed and used upon arrival

5. Multi layer PCB wiring structure with excellent electromagnetic shielding effect

6. Gold plated contacts of connectors, anti-oxidation, stable contact during long-term operation

7. High precision machining of positioning holes, precise matching and installation with equipment racks

8. 2L08-05105-11 undergoes power on aging testing to reduce the probability of on-site failures

9. The circuit layout has been optimized to shorten the signal transmission path and reduce losses

10. Meet the requirements for use in dust-free workshops and prevent the generation of small debris that can contaminate the chamber

11. Having excellent anti vibration ability, the equipment is less prone to virtual welding during operation

12. Standard external interface, easy and fast maintenance and disassembly process

13. Strictly follow TEL's original factory design standards, and the same model can be directly exchanged

14. Board surface protective coating, resistant to dust and slight moisture erosion on the circuit

15. Batch products have unified electrical parameters, and spare parts replacement does not require additional debugging

TEL 2L08-05105-11 PCB board is a specialized circuit board for TEL semiconductor process machines, suitable for equipment maintenance and replacement, and has excellent stability in continuous operation

Product imag
