MATROX Y7247-03 acquisition card

MATROX Y7247-03 acquisition card

 Introduction

MATROX Y7247-03 acquisition card

1. Adapt to the vision system of semiconductor lithography equipment, real-time acquisition of industrial camera image signals

2. Y7247-03 has high image sampling accuracy, ensuring clarity in visual positioning detection

3. Standard PCIe bus interface, high-speed transmission of image data with low latency

4. Equipped with a hardware image processing unit to share the computational load of the host computer

5. Y7247-03 supports multiple industrial video signal formats and has wide compatibility

6. Board circuit optimization, anti electromagnetic interference, suitable for complex RF operating conditions of the machine

7. Support external trigger collection and synchronize the timing of device process actions

8. Original factory component welding, after long-term power aging screening

9. Golden finger antioxidant treatment, long-term insertion and removal to maintain stable signal transmission

10. Y7247-03 driver is compatible with industrial control systems and easy to debug

11. Compact standard board type, suitable for installation in industrial control chassis card slots

12. Continuous stable operation for 7 × 24 hours, with controllable temperature rise during long-term operation

13. Equipped with a signal buffer circuit to reduce image distortion and noise

14. Following Matrox's original design standards, spare parts of the same model are directly interchangeable

15. Stable storage and forwarding of image data to meet the visual traceability requirements of machines

The MATROX Y7247-03 acquisition card is a specialized visual image acquisition board for semiconductor equipment, commonly used for wafer visual inspection and replacement of spare parts for positioning systems.

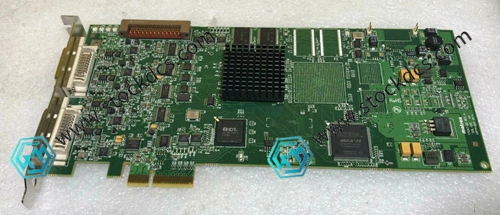

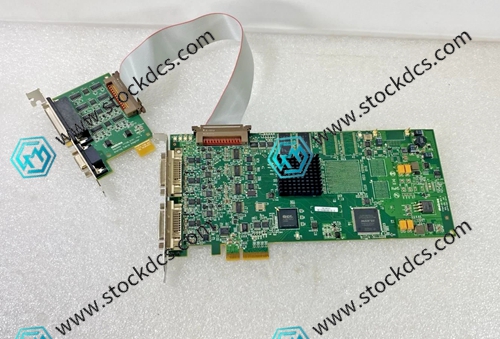

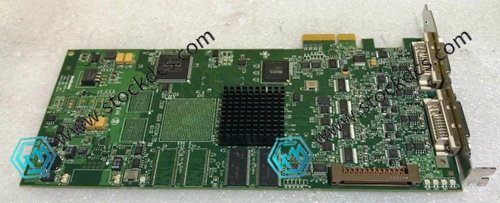

Product imag
