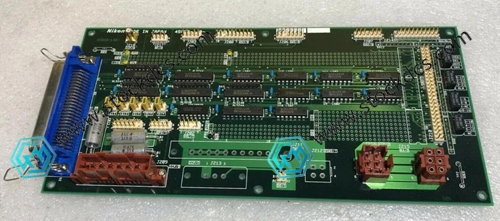

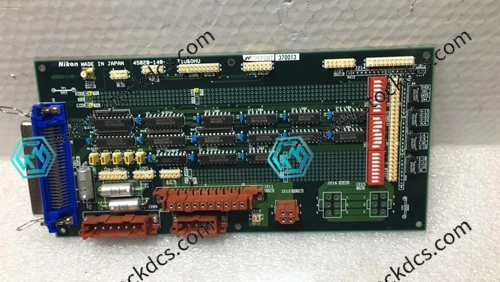

NIKON 4S020-140 Printed Circuit Board

NIKON 4S020-140 Printed Circuit Board

 Introduction

NIKON 4S020-140 Printed Circuit Board

1. Compatible with NIKON lithography equipment main control system, stable and reliable signal transmission

2. 4S020-140 line impedance precise control, effectively suppressing signal crosstalk

3. The board has excellent heat resistance and is suitable for continuous working temperature inside the machine

4. Original factory surface mount welding of electronic components, complete assembly of the whole machine can be directly installed

5. Multi layer circuit board structure with excellent electromagnetic anti-interference capability

6. Gold plating process for connectors to slow down oxidation and maintain stable contact resistance

7. High precision machining of positioning holes, seamless assembly with equipment racks

8. 4S020-140 has undergone power aging screening and has a low failure rate during operation

9. Optimization of circuit layout, shortening signal paths, and reducing transmission losses

10. Meets the standards for use in semiconductor cleanrooms and is not prone to generating dust and debris

11. Good seismic performance, equipment is not prone to virtual welding during continuous operation

12. Standard interface specifications, easy and convenient disassembly and maintenance

13. Following Nikon's original design standards, the same model can be directly interchanged

14. The board surface is equipped with a protective coating to resist dust and slight moisture erosion

15. Good consistency of batch electrical parameters and strong compatibility of spare parts replacement

The NIKON 4S020-140 printed circuit board is a specialized board for Nikon semiconductor lithography equipment, suitable for factory equipment maintenance and replacement, and has excellent long-term stability.

Product imag
