TEL MPC-T0048A-11 PCB Assembly

TEL MPC-T0048A-11 PCB Assembly

 Introduction

TEL MPC-T0048A-11 PCB Assembly

1. Compatible with TEL semiconductor process equipment, with factory standardized installation dimensions

2. Optimize PCB wiring scheme to reduce electromagnetic interference

3. Integrate multiple signal circuits to achieve multi-channel signal transmission

4. Onboard protective devices, resistant to overvoltage and overcurrent impact damage

5. Industrial grade substrate material, resistant to vibration and not easily deformed

6. Reserved heat dissipation structure, continuous operation with stable temperature rise control

7. Standardized plug-in terminals, easy to assemble and disassemble

8. Clear division of component layout for easy troubleshooting of fault points

9. After undergoing high and low temperature aging tests, it has strong stability during long-term operation

10. Reliable solder mask and surface treatment, with moisture-proof and dustproof characteristics

11. Independent signal circuit design, single channel faults do not interfere with each other

12. Low signal transmission delay, in line with real-time control requirements of equipment

13. Standardization of electroplating hole process to improve the long-term conductivity life of the circuit

14. Compatible with native device control programs, no additional modification or debugging required

15. Complete assembly and factory inspection according to TEL's original factory specifications

The TEL MPC-T0048A-11 PCB component, as the core circuit component of the equipment, has stable electrical performance and is suitable for semiconductor equipment assembly and operation.

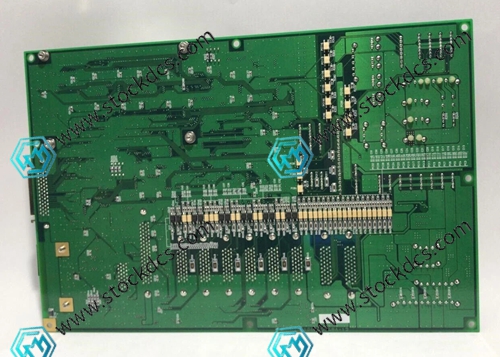

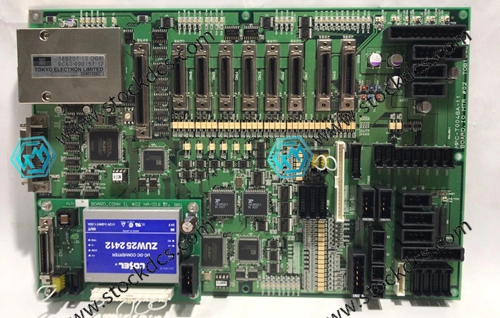

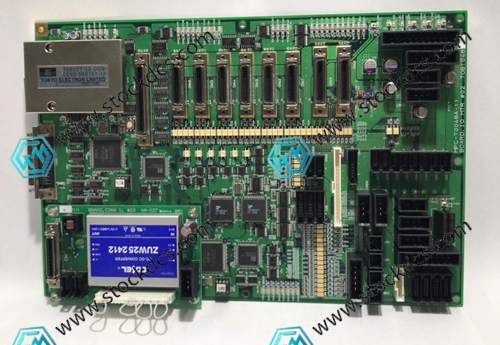

Product imag
