EQUIPE 2002-0142-022 Input/Output Control Board

EQUIPE 2002-0142-022 Input/Output Control Board

 Introduction

EQUIPE 2002-0142-022 Input/Output Control Board

1. Adapt to EQUIPE robotic arm signal interaction, with point definition standardized by the original factory

2. Digital signal isolation design to reduce the impact of on-site electromagnetic interference

3. Multiple input/output channels for unified processing of sensor and actuator signals

4. Onboard status indicator light, quickly determine channel on/off faults

5. Integrated overcurrent and reverse voltage basic protection to enhance device durability

6. Compact PCB layout, matching the internal installation space size of the device

7. Unified interface terminal specifications, convenient and reliable plug-in and assembly

8. The signal sampling response is fast, meeting the real-time control requirements of the equipment

9. Original substrate and solder mask process, temperature and moisture resistance suitable for workshop conditions

10. Optimization of line impedance, reducing distortion in long-distance signal transmission

11. After undergoing overall aging testing, the stability of continuous operation is excellent

12. Channel independent circuit, single channel failure does not affect the operation of other channels

13. Standardize pad design for easy maintenance and replacement of components

14. Compatible with native device control programs, no additional program modifications required

15. Strictly follow the EQUIPE industrial control board production and testing standards

The EQUIPE 2002-0142-022 input/output control board serves as the core board for mechanical arm signal transfer, with stable signal processing and easy equipment debugging and daily maintenance.

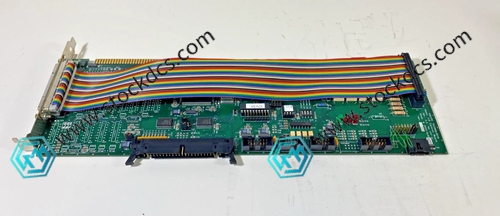

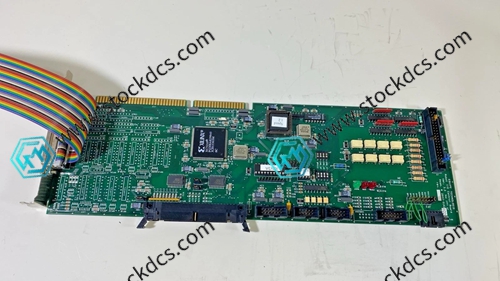

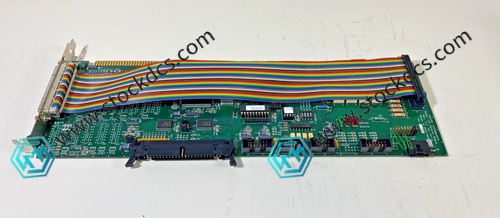

Product imag
