MATROX 63039620987 Image Acquisition Card

MATROX 63039620987 Image Acquisition Card

 Introduction

MATROX 63039620987 Image Acquisition Card

1. Maichuang Industrial Vision Dedicated Acquisition Card, responsible for digital acquisition and transmission of camera image signals

2. Support Camera Link interface industrial cameras, compatible with area array and line scan imaging devices

3. Onboard cache, smooth image data stream, reduce frame loss probability

4. Precise timing triggering control to meet the synchronous shooting requirements of machine vision

5. Built in hardware signal conditioning ensures the accuracy of image grayscale and color reproduction

6. PCIe standard slot specifications, convenient disassembly and replacement for industrial control computers

7. Optimize PCB wiring and have strong anti-interference ability in complex electromagnetic environments in clean workshops

8. Equipped with multiple programmable digital I/O channels, it interfaces with light sources, encoders, and sensors

9. Compatible with MIL visual development library, facilitating the development and deployment of image detection programs

10. Support continuous collection and operation for 7 × 24 hours without interruption for a long time

11. Non volatile storage saves collected parameters, no need for repeated configuration when powered on

12. Board metal reinforcement structure to resist the impact of equipment vibration during operation

13. Multiple electrostatic and surge electrical protection to extend the service life of hardware

14. Low image acquisition latency, meeting the real-time requirements of high-precision online detection

15. Original factory standardized industrial solution with excellent long-term operational stability

The MATROX 63039620987 image acquisition card is commonly used for semiconductor wafer appearance inspection and optical alignment equipment, serving as the core hardware for machine vision image acquisition.

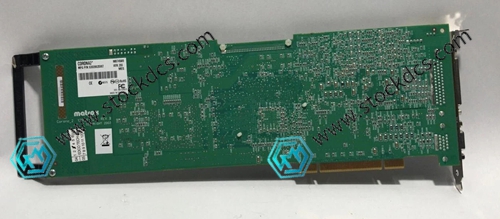

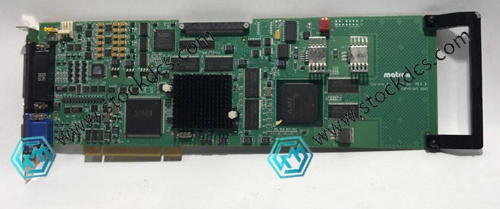

Product imag
