MKS EPCA-24592 Channel Controller Module

MKS EPCA-24592 Channel Controller Module

 Introduction

Product Features of MKS EPCA-24592 Channel Controller Module

MKS EPCA-24592 is a dedicated dual channel vacuum pressure control module for TEL semiconductor etching machines, which controls the signals of vacuum valves and vacuum gauges.

1. MKS EPCA-24592 original factory standard card, can be directly replaced with the same model without changing the wiring

2. Dual channel independent control, connected to vacuum valve and Baratron vacuum gauge respectively

3. Equipped with RS485 communication interface, it can transmit pressure data in real-time to the main control of the machine

4. Multiple IO terminals, collecting limit, alarm, and valve status switch signals

5. High precision pressure closed-loop regulation, stable vacuum chamber pressure control without overshoot

6. Metal shielding shell, dust-proof and anti-static compatible with dust-free wafer workshop

7. Layered isolation of strong and weak electrical lines to resist electromagnetic interference in the workshop

8. Multiple onboard protections, automatic channel cutoff for overcurrent, short circuit, and overheating

9. Front status indicator light, visually viewing channel operation and fault status

10. Standardized DB serial port connector, easy and fast disassembly, maintenance and wiring

11. Single channel independent circuit, one fault does not affect the other vacuum control

12. Industrial wide temperature element devices, continuous and stable operation in high and low temperature environments of cabinets

13. Built in signal filtering circuit to eliminate pressure signal jitter and distortion

14. Modular and compact rack structure, saving installation space inside the equipment

15. Factory full load vacuum condition aging test, low long-term machine failure rate

In summary, the MKS EPCA-24592 channel controller has precise voltage control, stable communication, and convenient maintenance, meeting the precise vacuum control requirements of semiconductor cavities.

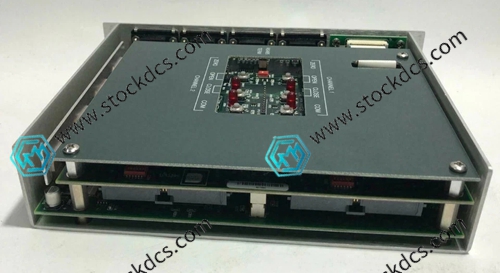

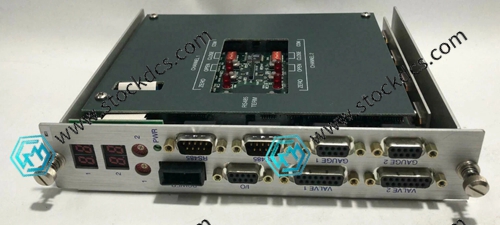

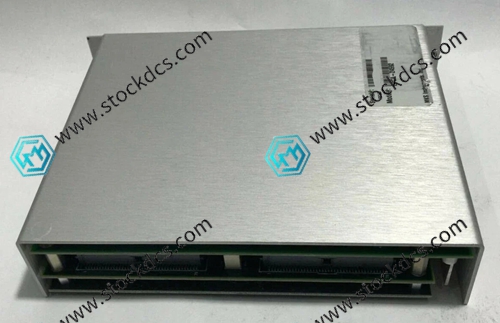

Product imag
