 Introduction

NIKON 4S019-445 Interface PCB Module Product Features

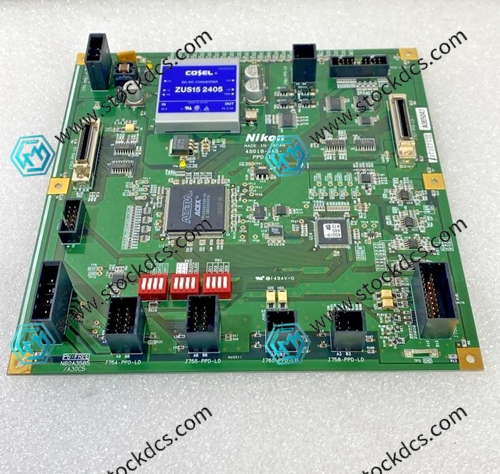

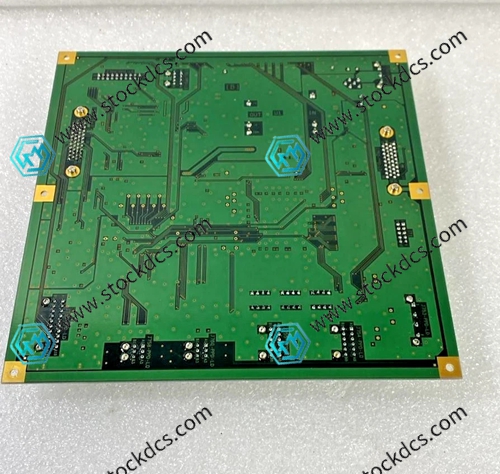

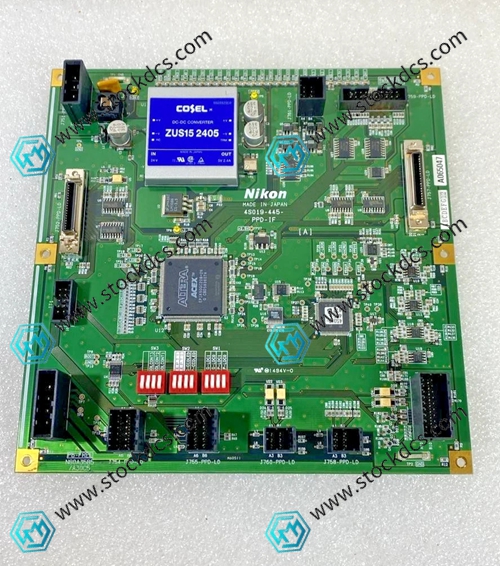

NIKON 4S019-445 is a dedicated signal interface board for Nikon semiconductor lithography machines, used for internal signal transmission and docking of equipment.

1. NIKON 4S019-445 original factory standard version, can be directly replaced with machines of the same model without changing the production line.

2. Gold plated interface terminal, stable conductivity, not prone to oxidation and poor contact after long-term use.

3. Multi layer precision PCB wiring, strong and weak electrical circuit zoning, strong anti-interference ability.

4. Integrate multiple digital signal channels to transmit machine motion and optical feedback signals.

5. Equipped with ESD electrostatic protection, suitable for anti-static environment in wafer cleanroom.

6. Onboard voltage stabilizing filter circuit ensures stable voltage output and reduces signal distortion.

7. Multiple sets of standard plug-in connectors for quick and convenient disassembly and maintenance.

8. Matching Nikon lithography system, there is no conflict between program and hardware compatibility.

9. Wide temperature component selection, suitable for high and low temperature conditions of equipment cabinets.

10. Built in fault detection circuit, power on self-test quickly identifies circuit abnormalities.

11. Compact board size, suitable for narrow installation slots inside equipment.

12. Original factory aging testing results in a low failure rate during machine operation.

13. Supports high-speed serial communication, with extremely low device signal transmission delay.

14. Independent branch protection, single channel failure will not result in the failure of the entire board.

15. Acid and alkali resistant dust-free workshop environment, moisture-proof and corrosion-resistant, with a long service life.

In summary, the NIKON 4S019-445 interface PCB module has stable signal transmission, simple replacement, and complete protection, which can meet the precision control requirements of Nikon semiconductor lithography equipment for a long time.
