LAM 810-073479-005 Printed Circuit Board

LAM 810-073479-005 Printed Circuit Board

 Introduction

LAM 810-073479-005 Printed Circuit Board

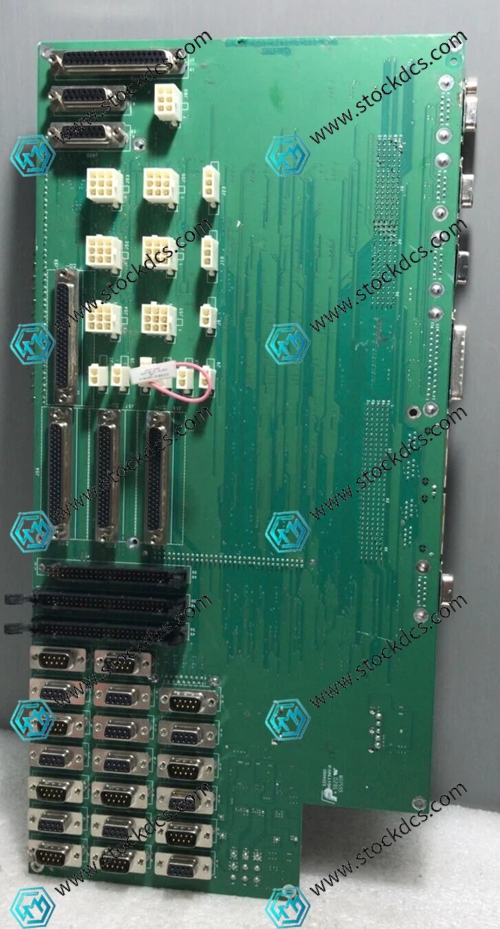

The Jetstream gas box main control PCB of the Panlin etching equipment controls the flow rate, pressure signal acquisition, and valve drive of the gas path

1. Original factory compatible LAM wafer etching chamber air control unit, slot matching without compatibility issues

2. Multiple analog/digital channels, collecting gas pressure and flow sensing signals

3. Full channel optoelectronic isolation to resist static electricity, electromagnetic interference, and prevent signal misoperation

4. Multi layer partition wiring, separation of strong and weak electricity, reducing signal crosstalk

5. Sunken gold fingers, clean workshop long-term high temperature not easy to oxidize, poor contact

6. Integrated multi-channel voltage regulator circuit, providing stable power supply for air valves and sensors

7. Built in multiple hardware protections against overcurrent, short circuit, and surge

8. Multiple communication interfaces for real-time transmission of gas path data with the main control of the entire machine

9. Direct insertion large board structure, easy to disassemble, repair and replace

10. Layout of heat dissipation through holes, controllable temperature rise during 24-hour mass production operation

11. Industrial high-temperature resistant surface mount components, suitable for dust-free and constant temperature working conditions

12. Reinforce wiring, resist equipment vibration, reduce virtual welding faults

13. Split status indicator light, quickly locate air channel faults

14. Power on hardware self-test, automatically verifying all signal circuits

15. Compliant with electrical specifications for semiconductor clean equipment, with a long durability life

In summary, LAM 810-073479-005 printed circuit board has stable pneumatic signal processing and high compatibility with the original factory, making it the core main control spare part of the gas supply system for Panlin etching equipment
