AMAT 0100-A1201 Printed Circuit Board

AMAT 0100-A1201 Printed Circuit Board

 Introduction

AMAT 0100-A1201 Printed Circuit Board

Compatible with AMAT semiconductor deposition and etching process equipment, dedicated machine control signal transmission

High TG high-temperature resistant substrate, not easily deformed or delaminated in high and low temperature environments around the cavity

Multi layer precision wiring structure, low transmission loss for high-speed analog and digital signals

Surface immersion gold process, pad anti-oxidation, long-term plug-in and contact stability without open circuit

Large area copper-clad shielding design to resist plasma RF electromagnetic interference

Low exhaust clean grade board, suitable for working conditions in dust-free wafer production workshops

Integrate multiple digital IO and analog acquisition circuits, balancing control and sensing signals

Onboard multiple current limiting and voltage stabilizing circuits to avoid damage to components caused by voltage surges

Optimize the layout of heat dissipation through holes, and control the temperature rise of power components during continuous operation

Standardized gold finger slot, easy to install and replace cabinet card slot through direct insertion

Strict impedance matching routing ensures that precision sensor data is not distorted

Seismic reinforcement of PCB inner structure, making it difficult for the equipment cavity to detach due to movement and vibration

Clear component identification and point numbering through silk screen printing, allowing for quick fault location during on-site maintenance

Original factory full load aging and power on testing, directly compatible with AMAT equipment of the same model

Compact board layout, suitable for small module installation space inside equipment

AMAT 0100-A1201 printed circuit board signal transmission is stable, clean and temperature resistant, and is a spare part for the core control board of semiconductor wafer process equipment

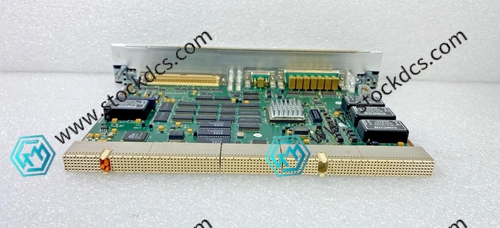

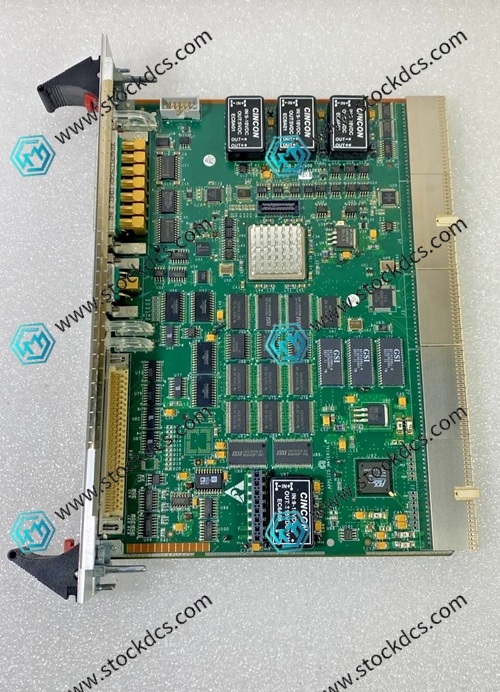

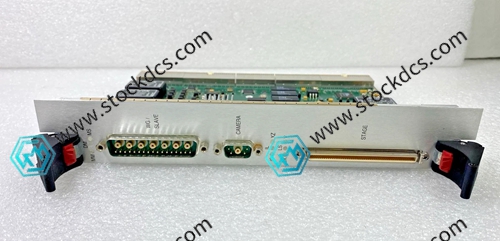

Product imag
