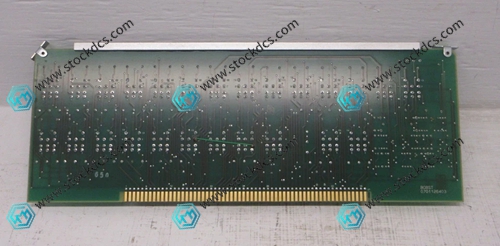

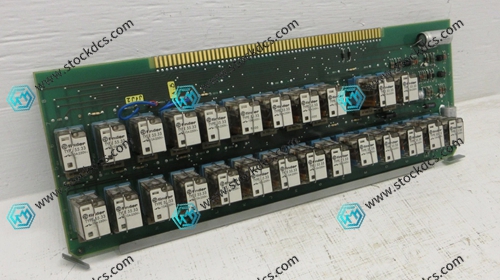

BOBST 0701126403 Relay Board

BOBST 0701126403 is a dedicated signal on/off control relay board for Bosch die-cutting and printing equipment, responsible for the electrical switching of the entire machine.

1. Onboard multiple sets of original relays for precise control of equipment start stop and solenoid valve circuits

2. BOBST 0701126403 is equipped with optoelectronic isolation components to isolate strong and weak electricity and prevent crosstalk

3. Each circuit configuration status indicator light provides a visual view of the contact on/off condition

4. Three proof coating on PCB surface, resistant to oil, toner, dust, and humid workshop environment

5. Gold plated connectors, with stable contact after repeated plugging and unplugging, are not prone to loose connections

6. Original factory standard pin layout, direct replacement and installation of the same specification board

7. Internal current limiting protection circuit, load short circuit to avoid burning the main control circuit

8. Industrial grade surface mount components with continuous and stable operation over a wide temperature range

9. Partition wiring layout for easy disassembly and maintenance of single point faults

10. Adapt to the native power supply specifications of the device without the need to modify external wiring

11. Anti vibration board technology, suitable for high-frequency start stop working conditions of production lines

12. Multi channel independent circuit design, single channel failure does not affect the operation of other points

13. BOBST 0701126403 original circuit solution, compatible with Bosch's original electronic control logic

14. Compact board structure, suitable for the original card space of the control cabinet

15. Contact wear-resistant material selection, maintaining control accuracy even after millions of on-off cycles

BOBST 0701126403 is widely equipped with Bosch flatbed die-cutting machines to ensure reliable electrical logic operation of the entire machine.
