Gasonics 95-0292 MAP130-4000 Power Supply Module

Gasonics 95-0292 MAP130-4000 Power Supply Module

Product Details Introduction

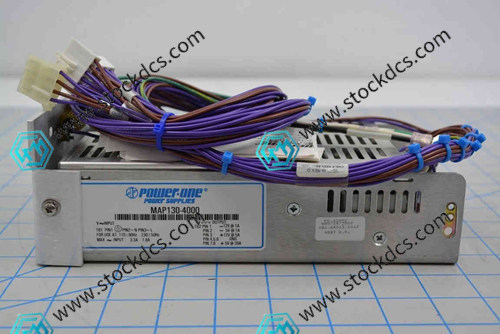

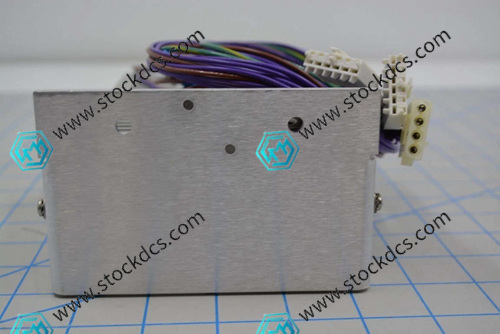

Product Name: Gasonics 95-0292 Power Supply Module

Original model: Astec MAP130-4000

Component type: Switching Power Supply Module

Main function: Provide stable DC power supply for control systems, drivers, I/O modules, etc. in Gasonics plasma processing equipment

1、 Main power supply for equipment control system

This module is typically installed in the control rack of Gasonics cleaning equipment (such as Aura series, L3500, P5000, etc.) to supply power to low-voltage systems such as logic control boards, relays, sensors, etc.

Typical output voltage:

+5V / +12V / -12V DC

Power level: Approximately 130W total output capacity

Multiple isolated outputs to meet the requirements of different boards/controllers

2、 Driver and signal board power support

MAP130-4000 is commonly used as a power source for modules such as stepper motor drivers (such as RD-323M10) and interface control panels (such as A95-108-02).

Supporting devices include:

Control motherboard, relay board

RF controller auxiliary power supply

Sensor power supply (such as photoelectric/capacitive sensors)

3、 Voltage isolation and interference filtering

This module is equipped with an EMI filter and short-circuit protection circuit, which can effectively suppress the conducted interference in the factory power supply, improve the anti-interference ability and operational stability of the whole machine.

Electrical characteristics:

Wide range AC input (typically 85-264VAC)

Isolated multi-channel DC output

Overcurrent/Overvoltage/Over Temperature Protection Function

Product imag
