Gasonics 06763-005 Control Board

Gasonics 06763-005 Control Board

Product Details Introduction

1、 Basic Information

Part number: 06763-005

Name: Control Board

Equipment manufacturer: Gasonics (now under Applied Materials)

Usage category: Control of internal subsystems/interface coordination of equipment

2、 Function Introduction

The 06763-005 control board is a functional module control board used in the Gasonics plasma stripping system. Its main functions are:

Manage the status and actions of a subsystem or peripheral device (such as elevators, sensors, power modules, etc.)

Execute system control commands (logic control, switch action, relay drive)

Implement input/output (I/O processing) of device control signals

Communicate with the main control board, provide feedback on status or receive commands

3、 Possible uses (based on similar model logic)

Although the board is a non main control board (such as A90-003-01), it usually performs one of the following functions:

Functional Direction Description

Elevator control controls the movement of the lifting platform within Loadlock or Process Chamber

Electromagnetic valve drives and controls the on/off of pneumatic valves, supporting automatic processes

Photoelectric sensor management receives status from upper/lower sensors and door switches

The status interlock management sends information to the main control, such as whether the system is ready and whether the door is closed

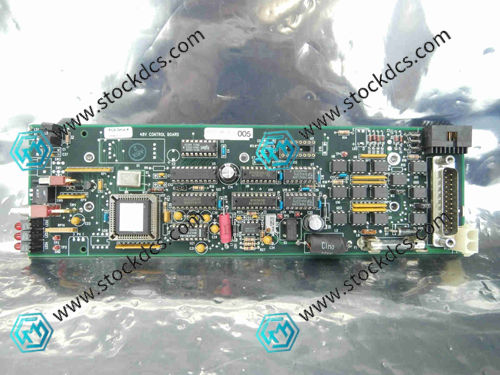

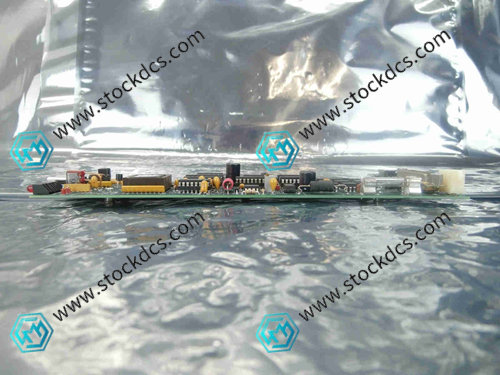

Product imag
