Gasonics 16025-02 Power Distribution Module

Gasonics 16025-02 Power Distribution Module

Product Details Introduction

Gasonics 16025-02 Power Distribution Module Brief Description

Name: Power Distribution Module

Part number: 16025-02

Manufacturer: Gasonics (now part of Applied Materials)

Main functions:

Receive main power input (usually 208-240V AC)

Allocate multiple low-voltage DC power sources (+24V,+15V,+5V, etc.)

Power supply to modules such as control board, solenoid valve, sensor, vacuum pump control, power controller, etc

Provide overcurrent and short-circuit protection functions

Output status signal to the main control system (such as "power supply normal")

Application devices:

Gasonics Aura series (Aura 2000, Aura 3010)

PEP 3510 / PEP 3600

L3510 plasma stripping equipment

Common connected devices:

Control board: A90-003-01, A90-005-02

Display panel: 95-0296

Microwave power module: 12-300000 series

Index reader, solenoid valve drive module, alarm light, etc

Troubleshooting suggestions:

If there is no voltage output from the module, check if the fuses, capacitors, and power relays are malfunctioning

If there is no electricity in some subsystems, check the corresponding output channel voltage

Check if the main power input and grounding are secure

Maintain good ventilation and heat dissipation to avoid module overheating

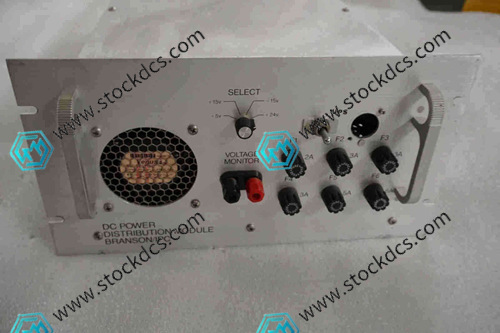

Product imag
