TEL Tokyo Electron 2180-020891-12 Printed Circuit Board

TEL Tokyo Electron 2180-020891-12 Printed Circuit Board

Product Details Introduction

Product Name: TEL Tokyo Electron 2180-020891-12 Printed Circuit Board

Device type: Digital Input/Output (DIO) Interlocking Circuit Board

Manufacturer: Tokyo Electron Ltd

1、 Main application areas

Semiconductor Manufacturing Equipment

Mainly used for cleaning, coating, photolithography and other process equipment of Tokyo Electron.

As the input/output and interlock control core board for digital signals.

Security interlock control

Implement interlocking protection for critical equipment links to prevent misoperation and equipment damage.

Assist in controlling the safety linkage of actuators such as pumps and valves.

Digital signal processing

Responsible for the conversion, transmission, and status monitoring of external and internal digital signals.

Support data exchange between PLC and main control system.

2、 Typical Function Overview

Digital input/output interface

Equipment interlock logic control

Status indication and fault detection

Electrical isolation protection

Modular design for easy maintenance

3、 Adaptation system or product series (example)

Tokyo Electron Clean Track Series

Tokyo Electron Coating and Photolithography Equipment

Other semiconductor process equipment requiring digital signal interlock control

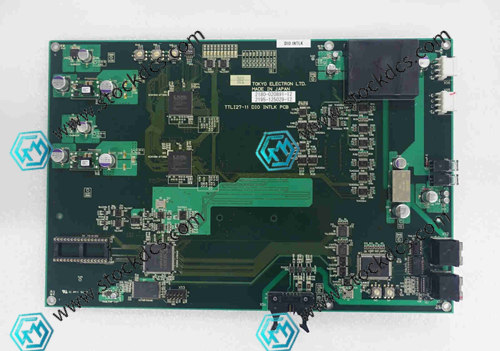

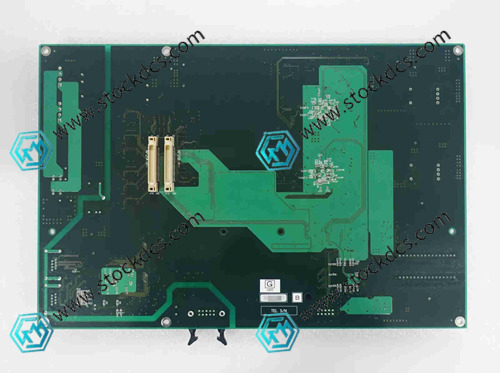

Product imag
