TEL Tokyo Electron 3D81-000017-V3 power module

 TEL Tokyo Electron 3D81-000017-V3 power module

Product Details Introduction

Introduction to TEL Tokyo Electron 3D81-000017-V3 Power Module

Product definition:

3D81-000017-V3 is a dedicated power module for Tokyo Electron semiconductor equipment, used to provide stable DC power to subsystems such as control systems, driver boards, sensors, etc.

Main functions:

Convert AC input power (such as AC 100-240V) into multiple stable DC outputs (such as+24V,+12V,+5V, etc.) to power critical circuits inside the equipment.

Typical application devices:

Widely used in high-end semiconductor process equipment such as wafer etching systems (Etch), CVD systems, ALD systems, cleaning systems, etc. for TEL, it is an indispensable part of the control system.

Support output range:

The output voltage may include a single or multiple sets of DC voltages, with current capacity supporting simultaneous operation of multiple modules and low ripple output characteristics to meet precision control requirements.

Product features:

High reliability, composed of industrial grade components

Multiple protections: overvoltage, overcurrent, short circuit, and over temperature protection

Modular design, easy to install and replace

Strong stability, suitable for precision electronic environments

Installation location:

Usually located in the control cabinet or main power compartment of the equipment, close to the interface board or controller, fixed with rails or screws.

Application scenarios:

Control the power supply of the motherboard

I/O interface, sensor power supply

Power supply for equipment such as solenoid valves and MFCs (mass flow meters)

Provide energy support for subsystem modules such as fans, motor drivers, etc

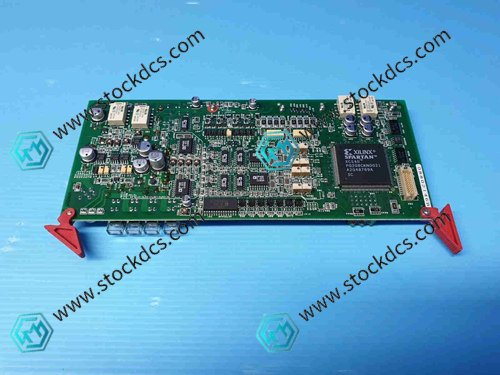

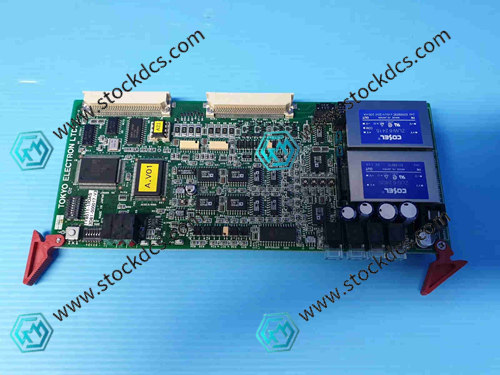

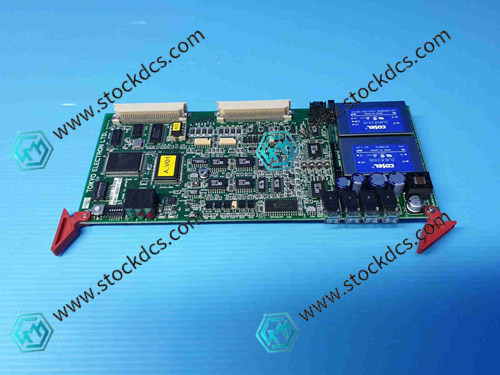

Product imag
