KLA Tencor 740-607108-005 Electric PCB Card

KLA Tencor 740-607108-005 Electric PCB Card

Product Details Introduction

The KLA Tencor 740-607108-005 Motorized PCB Card is an electric control board used in KLA Tencor's high-end inspection and measurement equipment. It is typically used to drive or control precision motion components such as scanning platforms, lens movement, laser head positioning, Z-axis adjustment devices, etc. It belongs to KLA's 740 series electronic platform and is an important component for achieving high-precision automated motion and feedback closed-loop control in equipment.

1、 Basic Information

Product model: 740-607108-005

Product Name: Electric PCB Card/Motorized PCB Board

Platform: KLA Tencor 740 Series

Application types: Drive control, motor management, motion feedback interface board

2、 Main functions

Function module description

Motor drive control controls stepper motors or servo motors to achieve precise actions such as linear movement, rotation, and Z-axis adjustment.

The feedback interface receives signals from encoders, limit switches, etc. to achieve closed-loop motion control.

Power allocation and regulation provide power to the actuator, with voltage and current regulation and current limiting protection.

Signal synchronization and triggering support synchronous execution of motion and sampling actions with the main control system.

3、 Typical application areas

1. Wafer scanning platform

Control the lateral (X-Y) or vertical (Z) movement of the platform to achieve full coverage of wafer inspection.

2. Auto focus/focusing mechanism

Used for precise adjustment of focusing components in optical systems, in conjunction with cameras to achieve clear imaging.

3. Camera or laser head moving device

Control the micro step drive of the lens group and laser head, supporting zoom, alignment, and height adjustment.

4. Wafer handling mechanism

Drive the vacuum adsorption arm, rotating device, transport platform, etc. to achieve automatic replacement and alignment.

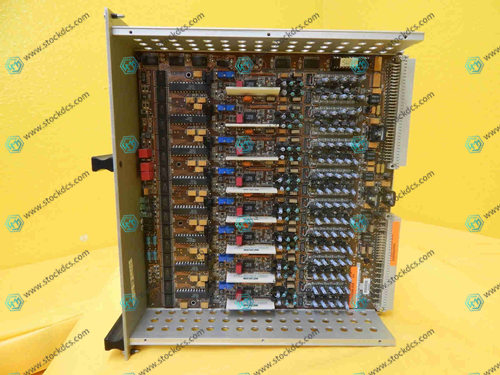

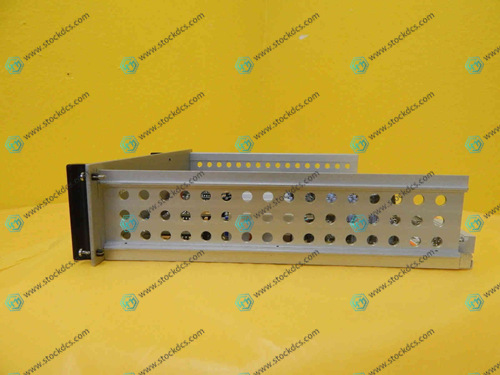

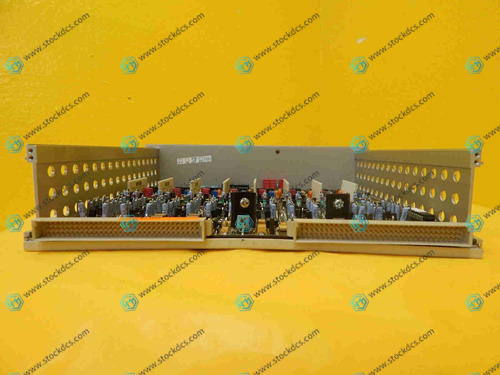

Product imag
