KLA Tencor 750-693047-002 Interface Board

KLA Tencor 750-693047-002 Interface Board

Product Details Introduction

1、 Product Name and Identification

Product model: 750-693047-002

Manufacturer: KLA Tencor

Product Type: Interface Board/Industrial Embedded Control Unit

Common identifier: Also labeled as "IMMECOR Dual Pentium RAID IPC CE400" in some systems

2、 Function Overview

This interface board is an embedded industrial grade computing platform that integrates the following core functions:

Dual Pentium CPU support: used for high-performance control and parallel processing tasks;

RAID storage support: Provides redundant storage configuration for multiple hard drives to ensure data integrity of the detection system;

Multi functional I/O interface: supports communication with scanners, image processing units, controllers, and human-machine interface devices;

Suitable for customized chemical control environments: capable of stable operation in high temperature, low noise, and high interference environments.

3、 Typical application areas

CD-SEM wafer inspection equipment

As the main control unit, it runs system control logic, focus control, image processing and other functions;

Support image acquisition, data processing, and device feedback control tasks in the system;

Used in the critical dimension measurement and defect analysis process of wafers.

Optical and electron beam detection platform

Control multiple sensor signal channels and feedback loops;

Support intelligent judgment and control operations such as image correction, device focusing, and platform positioning.

Data collection and analysis host

Combining RAID architecture to ensure high-speed writing and secure storage of collected images and test data;

Can be connected to the upper computer or MES system to achieve automatic data archiving and analysis.

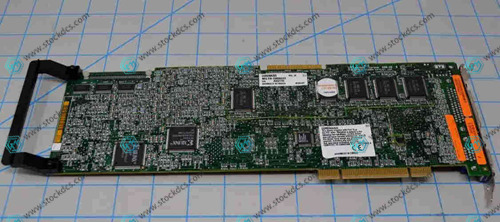

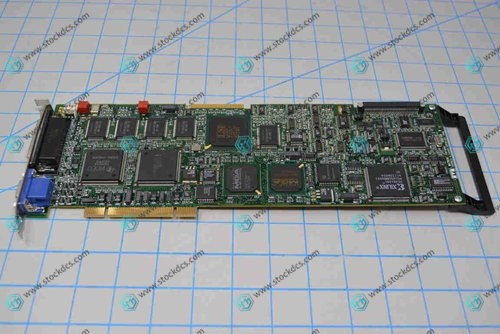

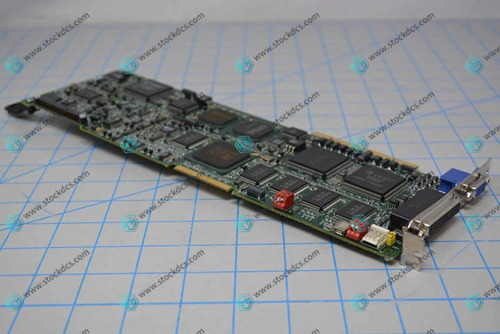

Product imag
