Bailey NTMP01 Terminal Unit

Bailey NTMP01 Terminal Unit

Product Details Introduction

Bailey NTMP01 is a Terminal Processing Module produced by ABB Bailey, commonly used in Bailey INFI 90 or Harmony control systems as a key component of process control systems for centralized signal acquisition, conversion, and transmission.

1、 Basic Information

Project Description

Product model NTMP01

Manufacturer ABB (formerly Bailey Controls)

Product Name: Terminal Processing Module

System Platform INFI 90/Harmony Control System

Installation method: Plug and unplug installation in the mounting cage

2、 Product functional features

Process signal processing function

Connect on-site I/O signals (such as switch values and analog signals);

Realize data collection, preliminary conversion, transmission and processing;

Support data interfaces for various industrial sensors or actuators.

System interface function

Transfer on-site data to control modules (such as IMMFP12, IMCP01, etc.);

Support data communication with INFI-NET network or system bus;

Can work in conjunction with controllers such as INICT01.

Diagnostic and self-monitoring functions

Has module health status indication;

Support hot plugging for easy system maintenance and fault replacement.

High reliability design

Industrial temperature range and electrical isolation;

Strong anti-interference ability and adaptability to complex industrial control field environments.

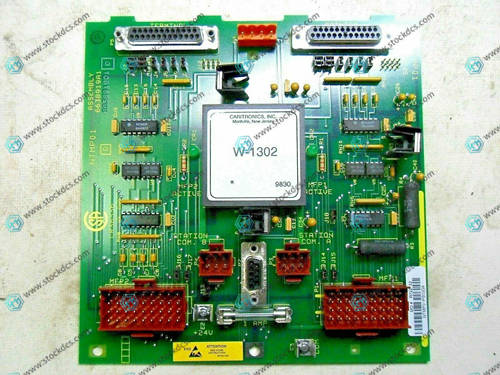

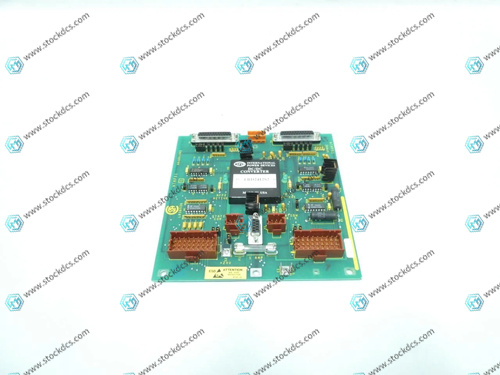

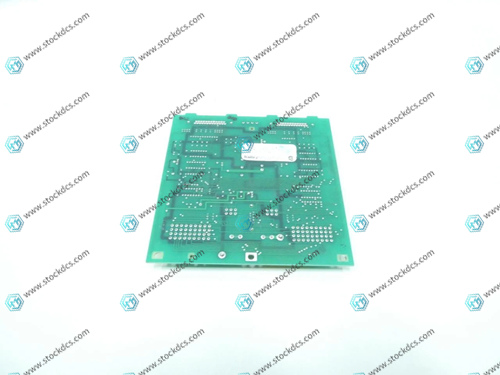

Product imag
