193X475AAG01 Phase Logic Board

193X475AAG01 Phase Logic Board

Product Details Introduction

Product Name: 193X475AAG01 Phase Logic Board

manufacturer: General Electric (GE)

Product Category: Control System Module/Phase Logic Control Board

Belonging series: 193X series

Function Description

193X475AAG01 is a phase logic board in industrial automation control systems, mainly used for the following functions:

Realize power phase sequence detection and phase synchronization judgment

Provide logical judgment output for driving or protecting the system

Used in conjunction with motor control systems or synchronous power supply systems

Suitable for multiphase motors, synchronous generators, or applications that require multi-channel synchronous control.

technical specifications

Supply voltage:+ 5V/± 15V DC (powered by the main system)

Signal input: multi-channel analog or digital phase input (usually three-phase AC signal)

Output format: TTL or control logic level signal

Working temperature: 0 ° C to 60 ° C

Installation method: Plug in board, suitable for GE 193X standard slot

Typical applications

Phase detection of synchronous power generation system

Phase logic synchronous control of multiple motors

Automatic Switching Logic Control of Power System

Industrial frequency converter or servo control logic judgment

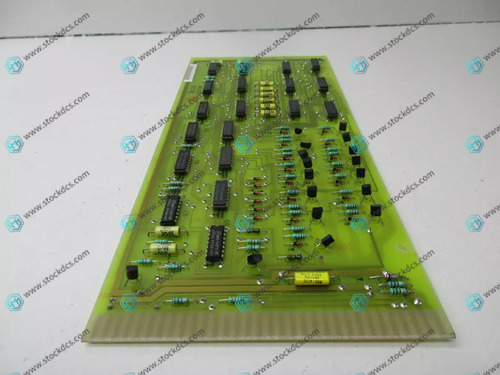

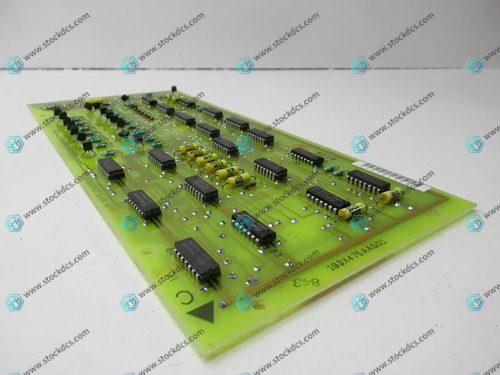

Product imag
