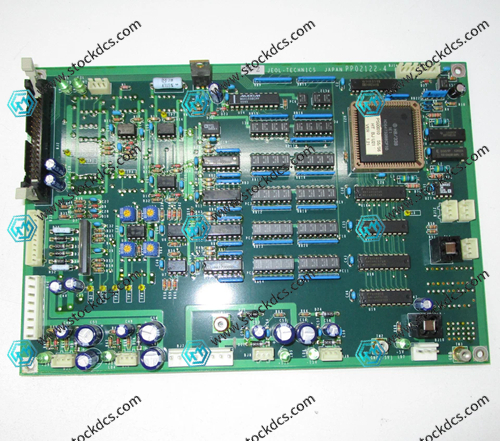

Jeol PP02122-4 PC board

Jeol PP02122-4 PC board

Product Introduction

Jeol PP02122-4 PC board

Product Features:

1. Adapt to the communication architecture of Jeol electron microscope host, with stable data exchange and no signal loss

2. Onboard signal conditioning circuit, high precision for weak signal acquisition, and good noise suppression effect

3. Original PCB wiring standard, reasonable impedance matching, suitable for high-frequency transmission

4. Industrial grade onboard devices that can adapt to constant temperature and clean working conditions in electron microscopy rooms

5. The interface definition is consistent with the original version, easy to disassemble and assemble, and supports direct replacement

Application fields:

1. Scanning electron microscope host control signal processing

2. Transfer of internal data exchange in transmission electron microscopy

3. Signal transmission of electron microscope scanning unit

4. Signal preprocessing of electron microscope detector

5. Characterization and maintenance of semiconductor samples using electron microscopy

6. Maintenance of Material Analysis Electron Microscopy Equipment

7. Electron microscope complete machine renovation and upgrade project

8. Replacement of spare parts for laboratory electron microscopes

9. Construction of electron microscope supporting testing fixtures

10. Maintenance of signal link for micro detection equipment

The Jeol PP02122-4 PC board is an important spare part for signal processing and data transmission in Jeol electron microscopy equipment.

Product imag
