Product Introduction

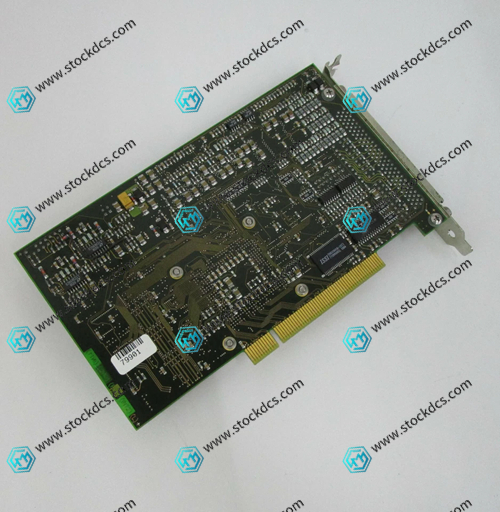

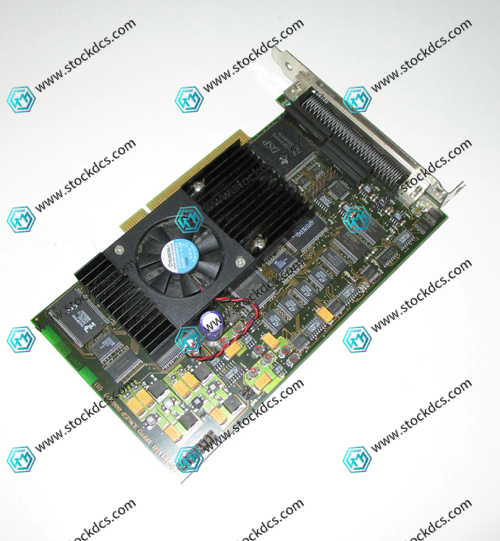

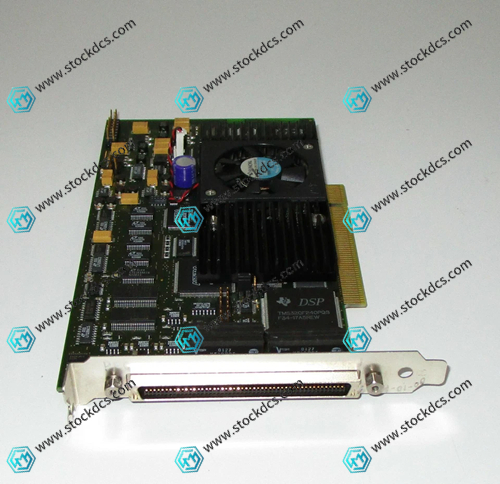

DSPACE GmbH DS1104-04 is a fast control prototype real-time control board equipped with a PowerPC real-time processor, used for control algorithm development and hardware in the loop testing.

Product application areas

Prototype development of motor drive control

Verification of Robot Motion Control Algorithm

New energy power electronics simulation testing

Rapid prototyping of automotive electronic control systems

Aerospace controller research and development

University Automation Research Experiment Platform

Photovoltaic energy storage converter testing

Real time control verification of servo system

Hardware in the loop semi physical simulation

Equipment spare parts maintenance and replacement

Product Features

Onboard independent PowerPC real-time processor with strong real-time computing performance

Integrate multiple AD/DA, encoder, and digital IO interfaces

Seamless integration with MATLAB/Simulink, one click download of models

PCI slot directly inserted into PC, quickly set up testing platform

Equipped with ControlDesk software, supporting online parameter tuning

Product Specifications

PowerPC floating-point processor with built-in DSP sub chip

Multi channel analog input/output, encoder acquisition channel

PCI bus interface, standard industrial control board appearance

This board is easy to develop and is a classic hardware for semi physical verification of control algorithms. dSPACE GmbH DS1104-04 is the preferred real-time control board for scientific research and electronic control prototype development
