 Introduction

BYSTRONIC E4005-5-B 10013883 Single Board Computer

This BYSTRONIC E4005-5-B 10013883 single board computer is an embedded main control board for the Baichao laser cutting machine, responsible for the overall program calculation and peripheral communication scheduling.

Baichao Laser Equipment Dedicated Embedded Single Board Host

Built in processor and storage chip, running device control programs

Integrate multiple interfaces such as Ethernet and serial ports to connect drivers and sensors

Real time parsing of cutting code, synchronized control of optical path and axis motion actions

Sensitive to the temperature inside the cabinet, it is necessary to ensure that the heat dissipation ducts are unobstructed

The complete serial number must be checked when making a purchase, and it cannot be directly replaced if the hardware version is inconsistent

Stop the machine and turn off the power before dismantling the board for maintenance, and wait for the components to fully discharge

Backup device parameters before installation and check if the gold fingers on the board are oxidized

Idle storage should be properly sealed with anti-static measures to avoid damp and dusty environments

Application

Main control matching of Baichao laser cutting machine system

Maintenance of control cabinet for sheet metal laser cutting equipment

Replacement of program units for CNC laser processing equipment

Upgrade and renovation of complete equipment system for sheet cutting

Replacement of embedded motherboard spare parts for industrial laser equipment

BYSTRONIC E4005-5-B 10013883 single board computer is responsible for program processing and overall coordinated control of laser cutting equipment.

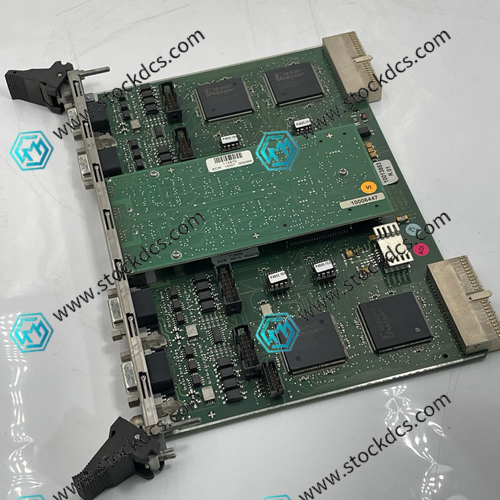

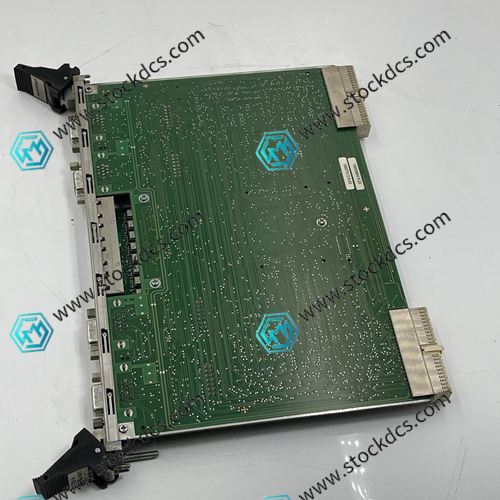

Product imag
