BERGER LAHR LS 220642-00-01C Controller Circuit Board

BERGER LAHR LS 220642-00-01C Controller Circuit Board

 Introduction

BERGER LAHR LS 220642-00-01C Controller Circuit Board

The BERGER LAHR LS 220642-00-01C controller circuit board is a dedicated control board for the Baigra stepper drive system, commonly used for replacing spare parts in older motion control equipment

Product Features

1 German BERGER LAHR original control board, dedicated to stepper systems, is a discontinued spare part

2. Process motion commands, control the position and speed of stepper motors

3 with signal isolation to resist electromagnetic interference in industrial sites

4-panel slot installation, compatible with the corresponding driver unit of Baigra

5 compatible with LS 220642-00-00C LS 220642-02-02C in the same series

6 built-in overcurrent and overheat protection, load abnormality protection board

7 comes with a status indicator light, quickly troubleshooting motion alarm faults

8 industrial PCB boards, suitable for workshop vibration and dust environment

Application Areas

1. Motion calculation processing of BERGER LAHR stepper drive system

Signal interaction between controller and stepper motor

3. Equipment axis positioning start stop and displacement control

4. Maintenance and replacement spare parts for old Baigela sports equipment

5 Automatic production line motion control industrial control spare parts

6. Processing of Feed Signal Output for Packaging Machinery

7-axis equipment linkage action control

There is not much stock of this board, most of which are disassembled and inspected parts. Before installing it on the machine, check the hardware version to prevent the BERGER LAHR LS 220642-00-01C controller circuit board from moving, reporting errors, and shutting down

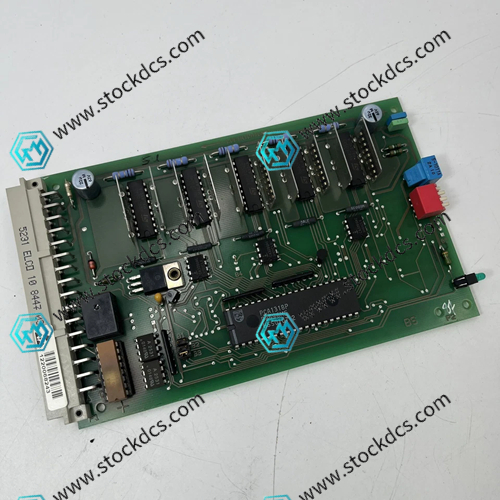

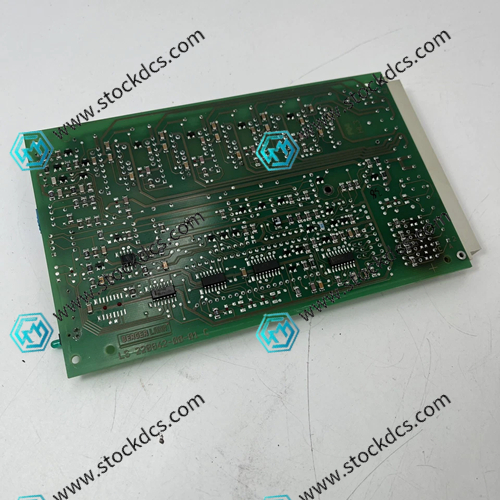

Product imag
