 Introduction

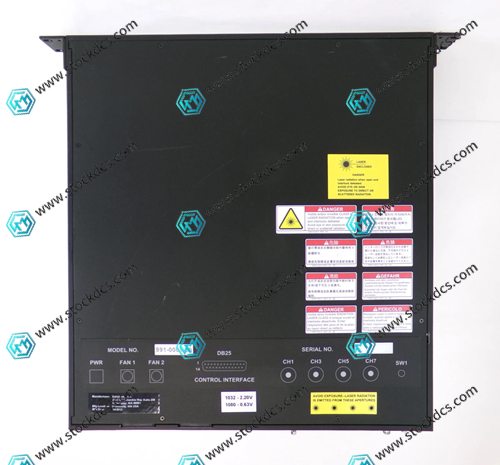

Sekidenko 991-0001-00 rack mounted laser transmission system, a dedicated rack integrated laser optical path transmission unit for semiconductor temperature measurement equipment.

Product Features:

1. Low optical path loss, stable laser beam transmission, and minimal distortion of temperature measurement signals

2. Rack integration, good optical path shielding and protection, isolating workshop interference from stray light

3. The internal optical path components are modularized, and partial damage can be replaced separately without the need for complete disassembly

4. Anti cabinet vibration, small beam offset during long-term operation

5. Adapt to equipment rack installation, with simple wiring and debugging steps

Product Parameters:

1. Matching semiconductor temperature measurement host optical signal interface, transmitting laser transceiver signals

2. Built in optical path monitoring, providing feedback on the beam status to the main control of the entire machine

3. Adapt to the regular temperature, humidity, and clean working conditions inside the cabinet

4. Standardized installation dimensions of the rack, compatible with the original cabinet slots of the equipment

5. Abnormal output alarm of optical path, easy to quickly locate optical path faults

Application fields:

1. Semiconductor etching and coating equipment, wafer non-contact temperature measurement optical path transmission

2. Laser optical path matching for temperature detection system inside the process chamber

3. Replacement of aging spare parts for laser transmission units of old machines

4. Semiconductor equipment renovation project optical module matching

5. Calibration and debugging of temperature measurement optical path after cavity maintenance

The stability of Sekidenko 991-0001-00 optical path transmission directly affects the accuracy of wafer temperature detection and determines the actual effect of process temperature control.
