Comet Technologies 27-422531-00 RF Controller Module

Comet Technologies 27-422531-00 RF Controller Module

 Introduction

Comet Technologies 27-422531-00 RF controller module is the core control board inside the RF matching device of etching equipment.

Product Features:

1. Dynamic tuning has a fast response speed and quickly completes matching convergence when the load impedance suddenly changes

2. Anti cavity electromagnetic interference, parameters of the cabinet will not drift in complex electromagnetic environments

3. The board has high integration and supports hot swappable replacement, without the need to disassemble the entire matching box

4. Equipped with fault self diagnosis, it can record tuning abnormal history logs for easy replay

5. Collaborate with RF source to reduce plasma arc jumping phenomenon

Product Parameters:

1. Adapt to the native communication link of Lam devices and receive tuning commands issued by the entire machine

2. Collect phase and standing wave signals, and output real-time tuning drive signals

3. Tolerate temperature fluctuations inside the cabinet and adapt to long-term continuous process conditions

4. Onboard status indicator light, allowing for intuitive viewing of operating conditions on site

5. Output fault codes when abnormal, reducing on-site troubleshooting time

Application fields:

1. Internal tuning control of Comet RF matching device in Panlin etching machine

2. RF impedance closed-loop regulation and control of plasma etching chamber

3. Replacement of faulty boards in the RF circuit of semiconductor process cavities

4. Two mobile phone matching units, renovation, maintenance, and supporting spare parts

5. Calibration and debugging of RF tuning parameters after cavity maintenance

Comet Technologies 27-422531-00 determines the reaction capability of the entire RF matching system, directly affecting the probability of chamber arcing and the stability of process operation

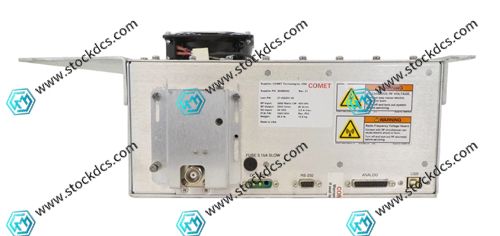

Product imag
