 Introduction

Erhardt+Leimer DRS2202 Network Oriented System Product Features

Erhardt+Leimer DRS2202 is an integrated correction and guidance system specifically designed for coil production lines. It supports industrial bus networking control and is compatible with printing, film, and lithium battery coating equipment.

1. Erhardt+Leimer DRS2202 has a built-in brushless driver, which provides fast correction response and precise correction of coil offset.

2. Comes with Ethernet communication interface, supporting Profinet, EtherNet/IP industrial network networking.

3. Integrated high-precision photoelectric sensor, non-contact detection of roll edges without loss.

4. Multiple sets of digital IO ports that can interface with limit, alarm, and start stop external signals.

5. Built in material formula storage, switch rolls and retrieve corresponding correction parameters with one click.

6. The compact integrated structure of the whole machine allows for direct installation of the rack without the need for disassembly and assembly.

7. Built in multiple fault self checks, real-time reporting of offset exceeding limits and sensor disconnection alarms.

8. All metal sealed body, dustproof and moisture-proof, suitable for wet coating and printing conditions.

9. Support remote upper computer monitoring, real-time viewing of correction position and running speed data.

10. Built in filtering anti-interference circuit to resist electromagnetic interference from frequency converters and motors.

11. Adjustable correction thrust, suitable for different tension rolls of thin paper, thin film, and thick copper foil.

12. Standardized quick connect terminals make equipment maintenance, replacement, and disassembly simple.

13. Wide temperature industrial components ensure continuous and stable operation in high and low temperature environments in the workshop.

14. Single system independent closed-loop control, multiple unit networks work synchronously without interfering with each other.

15. Factory full load aging test, low failure rate in long-term high-speed coil production.

In summary, the Erhardt+Leimer DRS2202 network guidance system has high correction accuracy, complete networking functions, adaptability to various coil production lines, easy installation and operation, and ensures no deviation or defective products in coil processing.

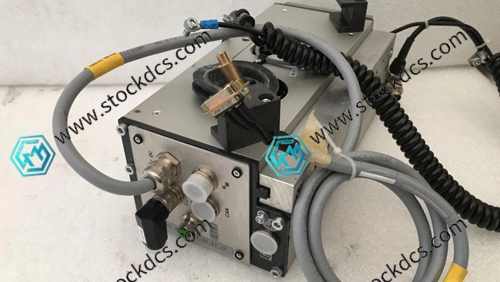

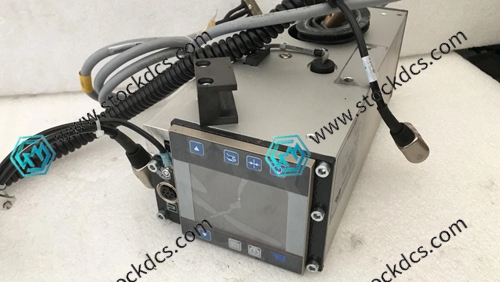

Product imag
