TEL E2B023-11 interface module

TEL E2B023-11 interface module

 Introduction

TEL E2B023-11 Interface Module Product Features

TEL E2B023-11 is a signal adapter card specifically designed for Tokyo Electronics Semiconductor machines, used for signal exchange between equipment controllers and peripherals.

1. TEL E2B023-11 standard plug-in card structure, rack insertion replacement, no need to change wiring.

2. Board end gold-plated connector, stable contact, not prone to oxidation and signal breakage.

3. Layered wiring of strong and weak electrical lines to isolate electromagnetic interference.

4. Multiple digital input and output channels, collecting sensor and limit signals.

5. Equipped with ESD electrostatic protection, suitable for anti-static environments in dust-free workshops.

6. Built in filtering and voltage stabilization circuit ensures distortion free signal transmission and low latency.

7. Matching TEL etching and thin film whole machine system, compatible with software and hardware without conflicts.

8. On board fault self-test circuit, power on quick positioning channel abnormality.

9. Multiple sets of standard cable interfaces, easy disassembly and maintenance operation.

10. Industrial wide temperature element device, suitable for continuous operation of high and low temperatures in cabinets.

11. Single channel independent protection, local faults do not affect the entire module.

12. Compact board size, saving equipment rack installation space.

13. Support high-speed bus communication within the device, ensuring stable data exchange.

14. Moisture resistant and corrosion-resistant sheet, resistant to trace chemical gases in the workshop.

15. Factory aging and power on testing, with a low failure rate during continuous operation on the machine.

In summary, the TEL E2B023-11 interface module has stable signal transmission, easy disassembly and assembly, and complete protection, which can meet the precision signal conversion needs of semiconductor equipment for a long time.

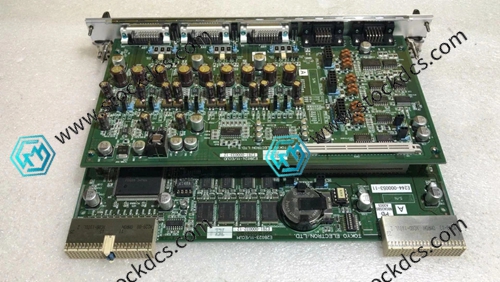

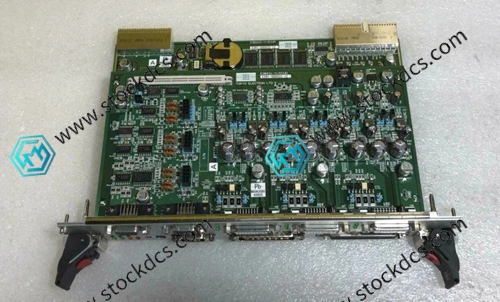

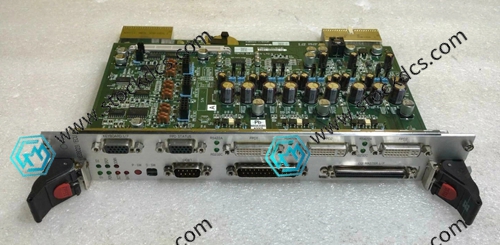

Product imag
