NI PCI-1424 Image Acquisition Board

NI PCI-1424 Image Acquisition Board

 Introduction

NI PCI-1424 Image Acquisition Board Product Features

NI PCI-1424 is an industrial digital vision dedicated PCI acquisition board, suitable for black and white, color digital cameras, with stable and easy-to-use acquisition.

1. NI PCI-1424 adopts standard PCI slots, making computer installation and plugging simple.

2. Up to 50MHz pixel clock, fast image acquisition and transmission speed.

3. Supports up to 32-bit image data, with clear image capture details.

4. Compatible with LVDS and TTL camera signals, compatible with multiple digital cameras.

5. Comes with 16MB onboard cache, which can be expanded to store images in larger memory.

6. Built in real-time lookup table for real-time correction of image brightness and color.

7. Support ROI local acquisition, reduce data transmission, and improve efficiency.

8. Equipped with 4 universal trigger IOs, accurately control the camera's capture timing.

9. Two external clock outputs can provide synchronous clock for the camera.

10. Supports multi tap data formats and is compatible with high frame rate industrial cameras.

11. Equipped with NI-IMAQ driver and easy to develop with LabVIEW.

12. Support external high and low level triggering, suitable for automated production line detection.

13. Equipped with a high-speed data channel, the highest image throughput is 200MB/s.

14. Can be linked with NI sports and DAQ devices to build an integrated visual system.

15. Industrial grade board design, anti-interference, stable long-term continuous acquisition.

In summary, the NI PCI-1424 image acquisition board has fast acquisition speed, wide camera compatibility, and complete supporting software, making it suitable for use in machine vision inspection, scientific research imaging, and other scenarios.

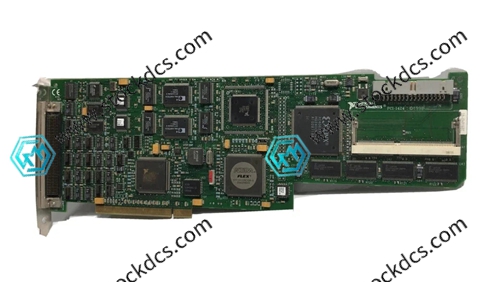

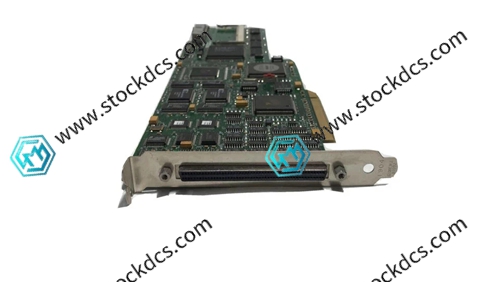

Product imag
