TEL 3M80-003138-13 Communication Module

TEL 3M80-003138-13 Communication Module

 Introduction

TEL 3M80-003138-13 Communication Module

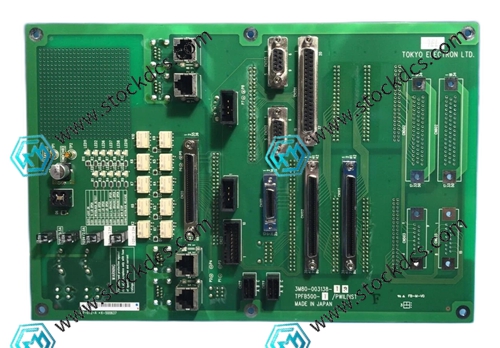

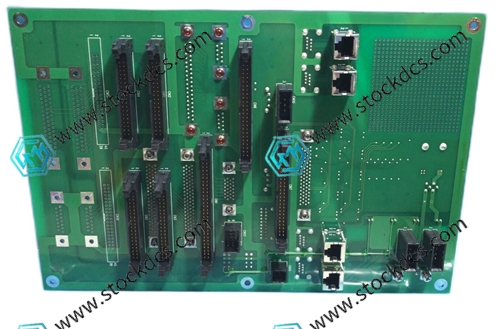

TEL 3M80-003138-13 is a dedicated bus communication board for Tokyo Electronics wafer etching and thin film equipment. It serves as a data exchange relay unit for the main control of the whole machine, cavity I/O, servo, and sensors.

1. TEL 3M80-003138-13 factory compatible with TEL 300mm process equipment, with fully matched backplane slots and no compatibility issues

2. Built in dedicated high-speed bus for multi module synchronous data exchange with extremely low latency

3. Independent optoelectronic isolation of communication channel, isolating static electricity and electromagnetic interference to avoid communication interruption

4. Multilayer shielding PCB layered wiring, high and low frequency communication signals do not interfere with each other

5. Sinking gold process gold fingers, clean workshop long-term high temperature not easy to oxidize, poor contact

6. Support parallel communication of multiple sub stations, synchronously collecting chamber pressure, vacuum, and temperature data

7. Hardware built-in communication verification and error correction, significantly reducing data loss and signal distortion

8. Integrated surge, overcurrent, and electrostatic multiple protection circuits to protect communication chips

9. Standard plug-in board structure, easy and fast disassembly, replacement, and maintenance of the chassis

10. Onboard heat dissipation through-hole array, 24-hour continuous production operation with controllable temperature rise

11. Industrial high-temperature resistant surface mount components, suitable for constant temperature conditions in dust-free workshops

12. Strengthen the wiring layout, resist equipment vibration, and reduce virtual soldering and wire breakage faults

13. Multi channel communication status indicator light, visually locate bus abnormal channels

14. Automatic bus self-test upon startup, quickly identifying communication link fault points

15. Compliant with electrical standards for semiconductor clean equipment, dustproof and corrosion-resistant, with a long service life

In summary, the TEL 3M80-003138-13 communication module has stable bus transmission, complete isolation protection, and high factory compatibility, making it the core communication spare part for internal data exchange in TEL wafer manufacturing equipment.
