TEL 3M80-002899-12 PCB board assembly

TEL 3M80-002899-12 PCB board assembly

 Introduction

TEL 3M80-002899-12 PCB board assembly

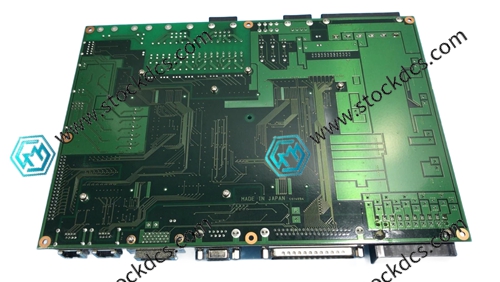

TEL 3M80-002899-12 is an original integrated PCB component for Tokyo Electronics etching and thin film deposition equipment, which integrates signal conversion, power distribution, and circuit control, connecting the main control of the whole machine with the cavity sensing and execution components.

1. TEL 3M80-002899-12 factory compatible with TEL 300mm wafer process equipment, with perfectly matched backplane slots

2. Multi layer independent wiring, strong and weak electrical isolation, reducing signal crosstalk interference

3. Full channel optocoupler isolation circuit, resistant to static electricity and surge protection precision chip

4. Solder pad immersion gold process, clean workshop long-term high temperature not easy to oxidize and break circuit

5. Multiple analog/digital channels, collecting pressure, temperature, and vacuum sensing signals

6. Integrate multiple voltage stabilizing circuits to provide stable voltage division power supply for daughter boards and solenoid valves

7. Built in multiple hardware protection circuits for overcurrent, short circuit, and overvoltage

8. Standard plug-in board, easy and fast disassembly, replacement and maintenance of cabinet

9. Dense heat dissipation via design, 24-hour continuous production with controllable temperature rise

10. Industrial high-temperature resistant surface mount components, suitable for dust-free and constant temperature working conditions

11. Strengthen the wiring layout, resist equipment vibration, and reduce virtual soldering failures

12. Onboard branch status indicator light, quickly locate abnormal signal points

13. Dedicated equipment bus line, with extremely low latency for main control data exchange

14. Automatic hardware self-test upon startup, verifying all signals and power supply circuits

15. Compliant with electrical specifications for semiconductor clean equipment, dustproof and corrosion-resistant, with a long service life

In summary, TEL 3M80-002899-12 PCB board components have reliable signal isolation, stable power supply, and high factory compatibility, making them the core spare parts for TEL wafer manufacturing equipment signal power integration.
