TEL AP9E-0858E Circuit Board

TEL AP9E-0858E Circuit Board

 Introduction

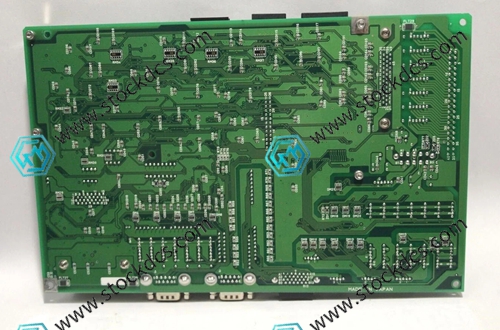

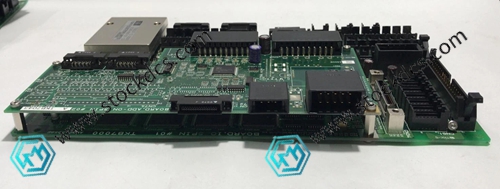

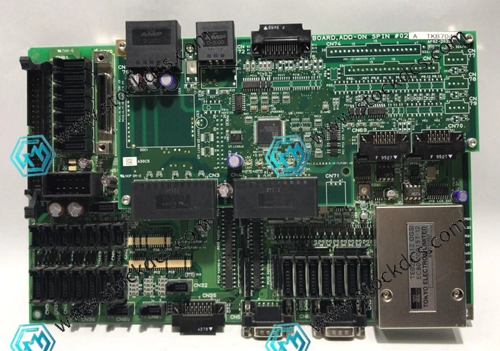

TEL AP9E-0858E Circuit Board

TEL AP9E-0858E is a dedicated main control PCB board for Tokyo Electronic Semiconductor Equipment, responsible for equipment signal acquisition and circuit control.

1. TEL AP9E-0858E multi-layer board wiring, layered isolation of high and low frequency signals, strong anti-interference ability

2. Original compatibility with TEL etching wafer equipment, hardware matching without compatibility issues

3. Onboard multi-channel signal terminals, compatible with sensors, RF, and actuator components

4. Sinking gold process solder pad, stable and non oxidizing contact under long-term high temperature conditions

5. Comes with hardware overcurrent and electrostatic protection to protect onboard precision chips

6. Reserved heat dissipation through holes for long-term continuous operation with low temperature rise

7. Integrated device communication line, low data transmission delay

8. Standardized board size, easy to plug and replace chassis

9. Industrial grade components, capable of withstanding temperature and humidity environments in clean workshops

10. Built in hardware verification circuit to reduce signal transmission deviation

11. Partition independent power supply wiring, stable voltage output without fluctuations

12. Seismic reinforcement line design, production line vibration is not easy to remove welding

13. On board fault point indicator light, quickly locate abnormal circuit

14. High density patch layout, integrating multiple control functions

15. Compliant with electrical standards for semiconductor dust-free equipment and meeting cleanliness standards

In summary, TEL AP9E-0858E circuit board has good shielding effect, complete protection, and high factory compatibility, making it a core control circuit spare part for TEL wafer process equipment.
