Mega_f 00120-2000-000-04 Motion Controller

Mega_f 00120-2000-000-04 Motion Controller

 Introduction

Mega_f 00120-2000-000-04 is a precision automation specific motion controller with efficient multi axis synchronous operation, suitable for linear motors and servo linkage control

1. Multi core computing chip, fast response to multi axis interpolation operation

2. Supports EtherCAT bus with minimal multi axis synchronization error

3. Built in multiple filtering algorithms to effectively suppress mechanical resonance

4. Capable of closed-loop composite control of position, speed, and torque

5. Optoelectronic isolation IO channel to resist on-site electromagnetic interference

6. Automatic motor parameter identification greatly simplifies on-site debugging

7. Large capacity program storage, capable of storing multiple sets of processing techniques

8. Complete fault diagnosis function, quickly locate fault codes and problems

9. Modular installation of guide rails, simple and convenient disassembly and maintenance

10. Multiple safety protections against overvoltage, overcurrent, overheating, and short circuit

11. Wide temperature circuit design, suitable for workshop temperature difference conditions

12. Low power consumption operation, low overall heat generation of the machine

13. Compatible with various incremental and absolute encoder signals

14. Reinforced plate structure to withstand long-term vibration of equipment

15. Original factory aging detection, supporting 7 × 24-hour uninterrupted operation

Conclusion: Mega_f 00120-2000-000-04 has high synchronization accuracy and strong stability, and is the core control unit of high-precision automation equipment

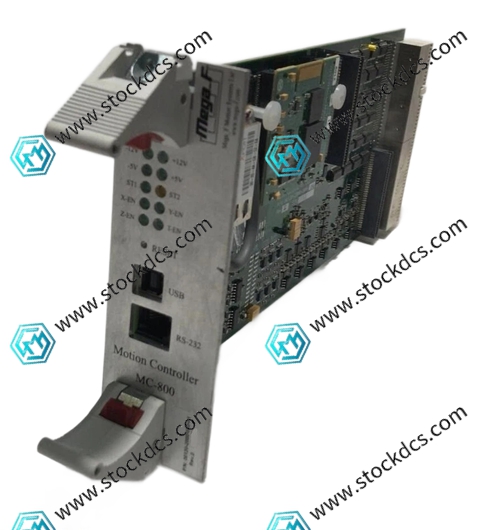

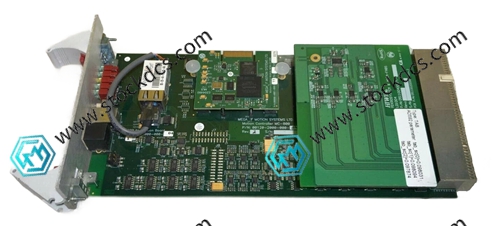

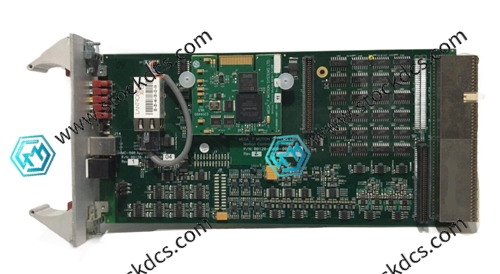

Product imag
