AMAT 70512551000 Interface Module

AMAT 70512551000 Interface Module

 Introduction

AMAT 70512551000 Interface Module Product Features

AMAT 70512551000 is compatible with semiconductor etching and deposition equipment, responsible for cavity signal transfer and transmission

Multiple IO channels, synchronously collecting sensor and actuator signals

Optocoupler isolation circuit, shielding electromagnetic interference from RF motors

Standard slot installation, hot swappable and replaceable without downtime

Three proof coating for the whole board, dust-proof, moisture-proof and corrosion-resistant in the clean room

Matched with the original equipment bus, directly connected to the main control without the need for an adapter board

Hardware watchdog, automatically resets and restores the link in case of communication abnormalities

Multiple circuit protection against overvoltage, overcurrent, and static electricity

Onboard status indicator light, visually visible for operational faults

Welding point reinforcement treatment, less prone to virtual welding and wire breakage in vibration environment

Wide temperature stable operation, suitable for cleanroom constant temperature conditions

Comes with built-in storage to record fault logs for easy maintenance and traceability

Reserved testing points, simple line inspection and verification operation

Compact board, multiple module stacking in the cabinet saves space

Original factory positioning hole solder pad, replacement assembly without changing the circuit

The AMAT 70512551000 interface module has stable signal transmission, easy disassembly and maintenance, and is a supporting signal transfer board for AMAT wafer process equipment

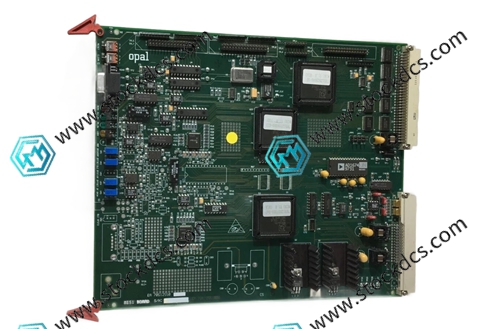

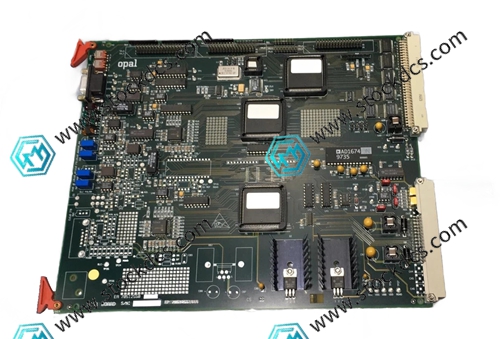

Product imag
