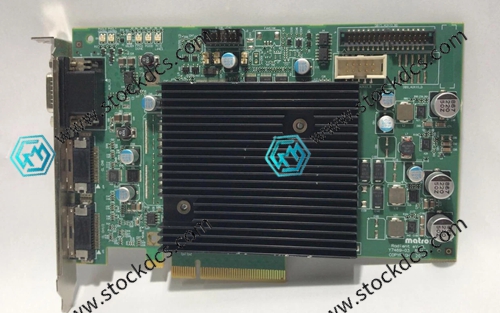

MATROX Y7469-03 acquisition card

MATROX Y7469-03 acquisition card

 Introduction

MATROX Y7469-03 Acquisition Card Product Features

MATROX Y7469-03 adopts PCIe high-speed bus, with fast image transmission speed and no frame loss

Compatible with GigE Vision industrial cameras, with strong visual capture compatibility

Built in FPGA chip, image preprocessing reduces host computing pressure

Trigger signal isolation circuit, strong anti workshop electromagnetic interference capability

Equipped with hardware cache, high frame rate capture ensures stable and uninterrupted image quality

Multiple electrical protections, including overvoltage, static electricity, and short circuit protection

Onboard status indicator light, one glance recognition of communication and fault status

Three proof coating for the whole board, dustproof and moisture-proof, suitable for clean workshop working conditions

Reinforced welding process, equipment vibration is less likely to cause poor contact

Support synchronous collection of multiple cameras, with minimal capture timing error

Half length compact version, industrial control chassis installation saves space

Compatible with mainstream industrial visual systems, convenient for secondary development

Low power operation, controllable temperature rise for long-term operation

Standard slot direct insertion installation, replacement without changing the circuit

Comes with fault log storage, convenient for visual fault maintenance and traceability

The MATROX Y7469-03 acquisition card has stable image acquisition and precise timing, and is commonly used in semiconductor vision inspection equipment

Product imag
