HP DMC-2142-DC24 Motion Control Board

HP DMC-2142-DC24 Motion Control Board

 Introduction

HP DMC-2142-DC24 Motion Control Board

Four axis independent motion control channel, servo and stepper motors can be mixed and driven together

DC24V DC power supply specification, suitable for semiconductor equipment cabinet standard power supply circuit

32-bit high-speed computing chip, short servo closed-loop refresh cycle, fast positioning response

Built in PID and feedforward adjustment algorithm, platform start stop without shaking, high repeatability accuracy

Supports multiple motion modes including linear interpolation, circular interpolation, electronic cam, and electronic gear

Large capacity non-volatile storage, capable of storing multiple sets of motion programs without losing parameters during power outages

Eight isolated digital inputs and outputs, capable of docking with limit switches, sensors, and trigger signals

Compatible with orthogonal and SSI encoders, high-speed position feedback without signal distortion

Multi task parallel operation, capable of executing 8 independent motion control programs simultaneously

Metal shielding plate body, isolated from RF and frequency converter interference, suitable for dust-free workshops

Equipped with specialized debugging software, waveform observation and parameter tuning are simple and intuitive to operate

Rich development API interfaces, supporting secondary development of industrial control programs and automation logic

Integrated overcurrent, overvoltage, and overtravel multiple hardware protections, automatic shutdown in case of faults

Standard slot installation, easy internal disassembly and replacement of equipment, time-saving maintenance

Industrial wide temperature element device, stable long-term continuous full load operation, suitable for precision testing equipment

The HP DMC-2142-DC24 motion control board has stable multi axis synchronization performance and is a specialized motion control spare part for semiconductor and precision automation equipment

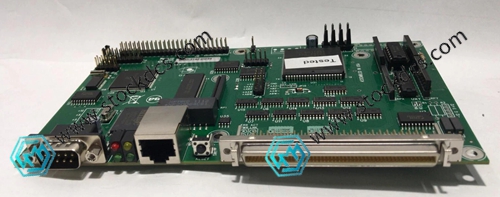

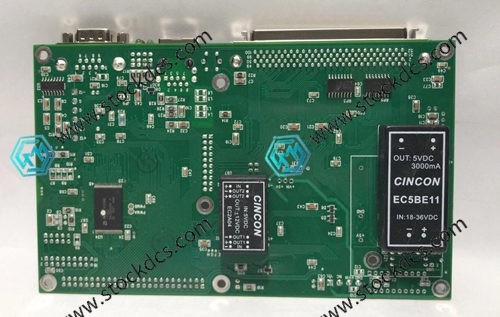

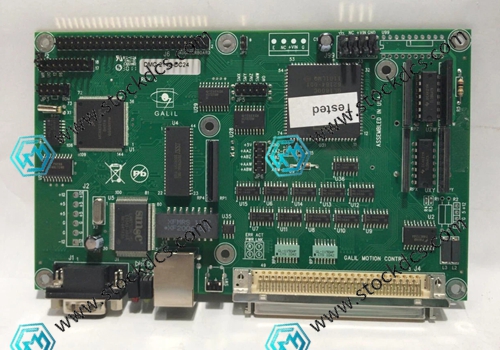

Product imag
