AMAT EA30613410 Controller Module

AMAT EA30613410 Controller Module

 Introduction

AMAT EA30613410 Controller Module Product Features

AMAT original factory matching control unit, compatible with Centura and Endura series etching and deposition wafer equipment

High speed real-time computing chip, millisecond level closed-loop control of chamber vacuum, gas, and RF process parameters

Multi channel isolated analog acquisition channel, accurately reading MFC, pressure, temperature sensing signals without interference

Built in multi-layer shielding filtering circuit, isolating the RF high-frequency electromagnetic of the cavity, ensuring long-term drift free signal

Integrated hardware protection against overvoltage, short circuit, static electricity, and overheating to prevent board burnout and shutdown

Multiple independent digital DI/DO ports, linked with vacuum valves, baffles, and endpoint detection actuators

Compatible with backplane bus and Ethernet dual channel, real-time bidirectional upload of process data to upper MES

Built in dynamic process adjustment algorithm, stable control of etching and thin film deposition rates, high wafer consistency

Onboard multiple sets of LED status indicator lights, quickly distinguishing communication, acquisition, and output fault channels

Clean room specific three proof insulation coating, low gas release and low dust generation, in line with the standards for use in clean rooms

Standard VME plug-in rack structure, quick replacement and maintenance without disassembling the cavity

Industrial wide temperature grade components, supporting uninterrupted continuous operation of 7 × 24-hour constant temperature dust-free production lines

Local fault log storage, complete recording of abnormal parameters, convenient for tracing and analyzing production line faults

Multi channel synchronous timing output, achieving collaborative synchronization of multi cavity process actions without delay deviation

Factory full channel load calibration, direct replacement with the same model, no need to readjust process parameters

The AMAT EA30613410 controller module is the core process control board for semiconductor thin film and etching equipment, with high control accuracy and excellent anti-interference performance, ensuring stable mass production of 300mm wafer processes.

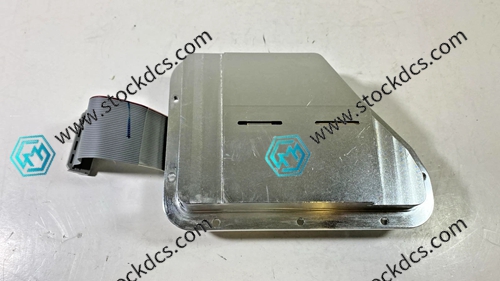

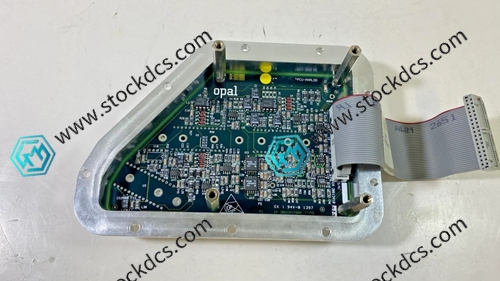

Product imag
