ACS UDMpm2-320A007-QTM3 Motion Control Controller

ACS UDMpm2-320A007-QTM3 Motion Control Controller

 Introduction

ACS UDMpm2-320A007-QTM3 Motion Control Controller Product Features

Dual axis integrated drive architecture, single machine can synchronously control two servo motors

Wide voltage 85-265V AC input, suitable for industrial general power supply conditions

Single axis continuous 7.5A, peak 15A output, maximum single axis power of 1.6kW

20kHz loop high-speed sampling, fast positioning response, minimal low-speed jitter

Dual loop dual feedback control, micrometer level precision positioning, stable and reliable

Compatible with incremental, sine cosine, absolute value encoders, and rotary transformers

Equipped with EtherCAT industrial bus, multi axis networking has strong synchronization

Comes with 8 digital inputs and 8 digital outputs, making device signal interaction convenient

Equipped with 4 channels of 12 bit analog input and 2 channels of analog output

Built in STO safety torque shutdown, shutdown protection ensures equipment safety

Supports multiple types of motors including servo, brushless, brushed, and induction motors

Equipped with NanoPWM servo algorithm, the static positioning error reaches nanometer level

Metal enclosed body, resistant to electromagnetic interference, dustproof, shock resistant and durable

Supporting ACSPL+programming, supporting trajectory planning and PLC logic operations

Standardized cabinet installation structure, simple wiring for easy integration of the entire machine

The ACS UDMpm2-320A007-QTM3 motion control controller is a precision equipment dedicated dual axis servo drive controller, with multi axis synchronization stability and simple debugging and maintenance.

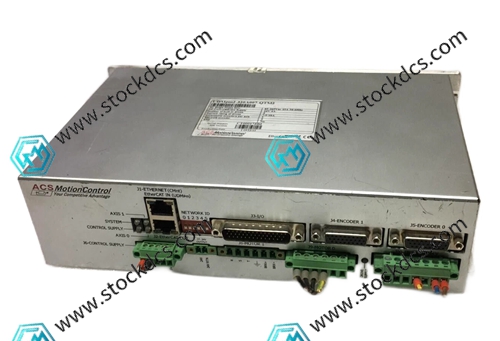

Product imag
