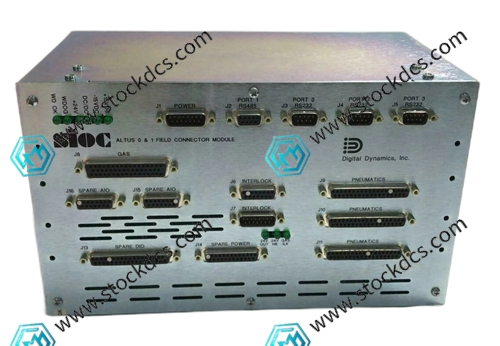

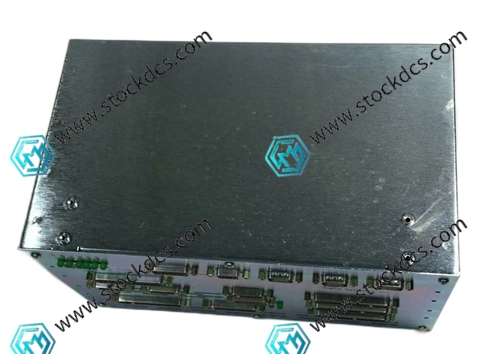

Lam 02-433499-00 Digital Dynamic Controller

Lam 02-433499-00 Digital Dynamic Controller

 Introduction

Lam 02-433499-00 Digital Dynamic Controller Product Features

Introduction: Lam 02-433499-00 is a specialized digital dynamic control unit for Panlin Semiconductor etching equipment, which controls the closed-loop adjustment of process parameters such as cavity RF, pressure, and temperature.

Original Lam matching components, compatible with a series of plasma etching process machines

High speed digital closed-loop operation, fast response and adjustment speed of process parameters

Multi channel analog signal acquisition, real-time reading of air pressure, temperature, and RF power

Independent dynamic adjustment channel, precise control of chamber plasma state

Optocoupler isolation circuit to isolate RF high-voltage electromagnetic interference

Standard bus communication interface, real-time synchronization of machine master control data

Built in PID dynamic algorithm, automatically corrects process parameter drift

Metal shielding shell, cleanroom anti RF clutter interference

Multiple circuit protection, preventing overvoltage, overcurrent, and static electricity from damaging components

Real time over limit fault alarm, rapid warning prompt for abnormal cavity

Modular standard specifications, easy disassembly and replacement of cabinets

Industrial grade long-life components, supporting 24-hour uninterrupted operation

Signal distortion free transmission ensures uniform and consistent wafer processing

Reserved hardware testing points for convenient equipment troubleshooting and troubleshooting

Compact body design, saving installation space inside equipment cabinets

Conclusion: Lam 02-433499-00 has precise dynamic adjustment and strong anti-interference ability, making it a core process control component for semiconductor etching chambers.
