BOBST 0701238504 processor module

BOBST 0701238504 processor module

Product Details Introduction

BOBST 0701238504 processor module

1. Original factory compatible Bobst Ambition series glue box and flat die-cutting equipment, with the core CPU control board and electronic control calculation center of the entire system.

2. Equipped with industrial grade main control chip and onboard storage particles, it stores device formula parameters, production programs, and fault logs, and retains power outage data without loss.

3. Multi bus communication port design, compatible with 704 and 705 series IO boards and driver boards, to coordinate data exchange and action scheduling of various sub modules in the entire cabinet.

4. Onboard multi-channel optoelectronic isolation bus circuit, strong and weak electrical partition wiring, isolates servo and frequency converter electromagnetic interference, avoids bus communication disorder and downtime.

5. Gold finger card slot insertion, compatible with 703-KS electrical control box standard slot, can be directly installed and replaced in situ, without the need for wire modification or reprogramming debugging.

6. Integrated power supply voltage stabilization conversion circuit, external 24V DC input, independently generates multiple chip power supply voltages, and adapts to voltage fluctuations in the workshop power grid.

7. Built in hardware protection for overvoltage, overcurrent, overheating, and short circuit, automatically locks and shuts down in case of abnormalities, preventing chip breakdown and burning of the entire board.

8. Partition status indicator light group, power supply, bus communication, system fault sub light prompt, quickly locate the fault point of the motherboard or backend peripherals.

9. PCB high corrosion resistant solder mask board, moisture-proof and oil powder dust corrosion resistant, suitable for harsh production conditions in packaging workshops with high humidity, oil stains and oil stains.

10. Onboard EMI full frequency filtering circuit, filters out on-site power cable clutter interference, ensuring accurate and stable high-speed data transmission.

11. Factory fixed exclusive equipment firmware, universal spare parts for the same model, compatibility between new and old equipment, and preferred replacement parts for old equipment renovation.

12. Wide temperature industrial component selection, continuous full load operation from -10 ℃ to+65 ℃, stable operation in high and low temperature workshops around the clock.

13. Equipped with a system self-test program, it automatically inspects the bus and external modules when powered on, and retains abnormal codes for easy equipment maintenance and traceability.

14. Integrate human-machine interface communication interface, dock with device operation display screen, issue real-time operation instructions, and transmit operational data.

15. Full load aging online testing of the factory's entire machine, with low failure rate for long-term continuous mass production and strong equipment operation stability.

The BOBST 0701238504 processor module is the core control component of the entire automation control system for the Bose Ambition model

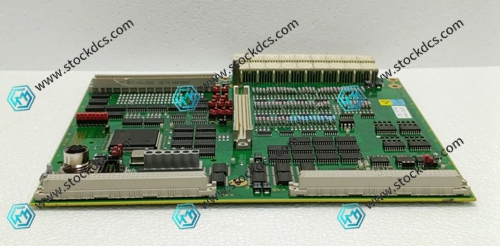

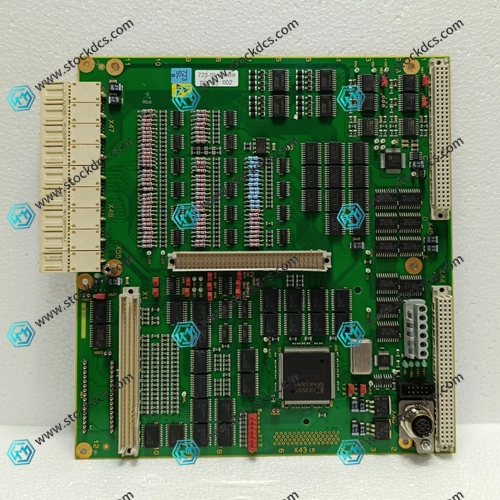

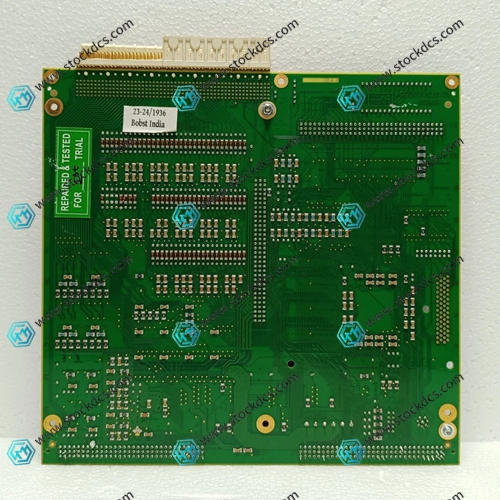

Product imag
