BOBST 704-1257-03 I/O Control Module

BOBST 704-1257-03 I/O Control Module

Product Details Introduction

BOBST 704-1257-03 is a digital I/O control module for the Bosch 704 series rack, used for on-site switch signal acquisition and actuator driving of die-cutting/gluing machines.

Original factory code: 704-1257-03 (alias 704125703)

Model adaptation: old control racks such as 704PF and 704ES

Channel configuration: 32 DI/32 DO, 24V DC signal

Input characteristics: photoelectric isolation, compatible with proximity/photoelectric/limit switches

Output driver: Relay/transistor optional, driving solenoid valve, indicator light

Signal filtering: RC hardware filtering to suppress jitter and electromagnetic interference

Bus communication: interface with 704-1097-07 board, dedicated bus interaction

Status indication: LED for each channel, power/operation/fault clear at a glance

Wide voltage power supply: 24V DC ± 20%, able to withstand voltage fluctuations in the workshop

Industrial protection: Three proof coating, dustproof, anti ink, moisture-proof

Reinforced gold fingers: earthquake resistant, plug and play resistant, suitable for high-speed mechanical vibration

Standard slot: 704 rack direct insertion, replacement without wiring

Power off safety: output status remains, power on restores preset logic

Plug and play: Replace the same number directly without the need for re debugging

Functional positioning: Device "IO hub", connecting on-site components with the main control system

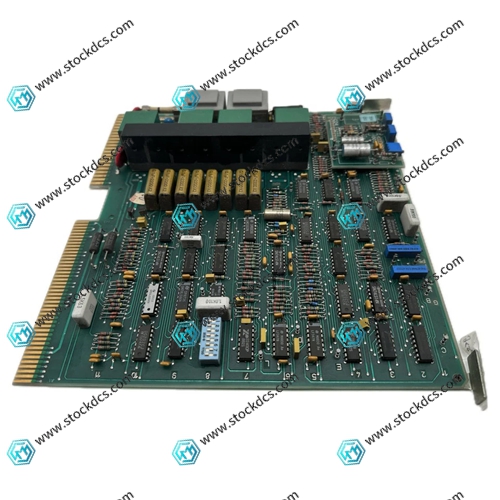

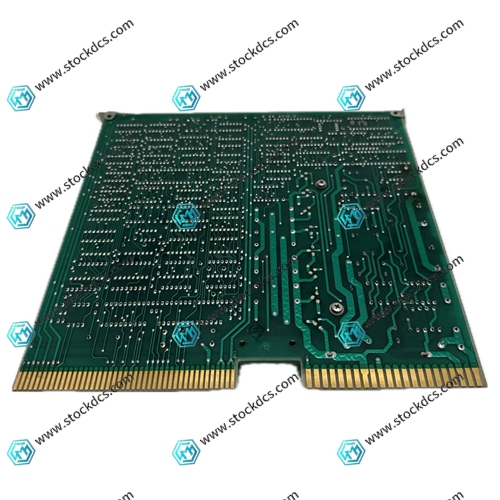

Product imag
