JANCD-JSP04-1 control board

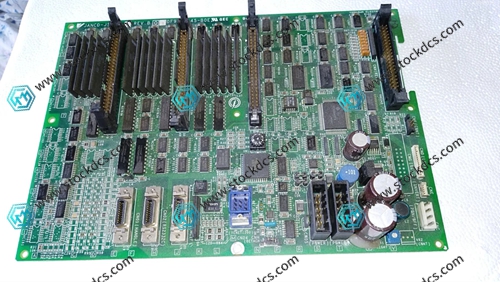

JANCD-JSP04-1 control board

Product Details Introduction

JANCD-JSP04-1 is an operation interface monitoring board for Yasnac CNC system in Yaskawa, integrating 9.4-inch TFT VGA LCD display for human-machine interaction and status monitoring of CNC system.

Compatible with Yasnac series CNC control system from Yaskawa, serving as the core display board for the operation interface.

Equipped with a 9.4-inch TFT VGA LCD screen, providing clear parameter and status visualization.

Core functions: system parameter display, axis status monitoring, alarm information prompt, operation menu interaction.

Onboard display driver and interface circuit, directly connected to the system bus, stable data transmission.

Industrial grade PCB and components, suitable for harsh environments such as workshop vibration and dust.

Support system diagnosis and fault code display for quick troubleshooting.

Using dedicated slots for installation, compatible with CNC control cabinet racks.

The working temperature is 0-55 ℃, the humidity is 5-95% RH (without condensation), and the environmental adaptability is strong.

Weighing approximately 1.36kg (3lb), the structure is compact and easy to install.

Applied to human-machine interaction scenarios of Yaskawa CNC equipment such as CNC machine tools and machining centers.

JANCD-JSP04-1 is a key display interaction unit of Yaskawa CNC system, ensuring intuitive and efficient equipment operation and monitoring.
