ABB DSQC608 3HAC12934-1 Robot Power Supply Module

DSQC608 (3HAC12934-1) is an ABB IRC5 series robot specific customer I/O power module that provides stable DC power supply for external I/O, sensors, and actuators of the robot. It is the core power supply unit of the IRC5 control cabinet.

Brand and model: ABB DSQC608, material number 3HAC12934-1, official name Customer I/O PS (Customer I/O Power Supply).

Adaptation system: IRC5 series robot controller, compatible with the full range of IRC5 models including IRB 120, IRB 140, IRB 2600, IRB 4400, IRB 6600, IRB 6700, etc.

Core function: Convert external AC power to stable DC, providing power for robot I/O modules, external sensors, solenoid valves, indicator lights, and other peripherals; Provide power distribution, status monitoring, and fault protection.

Electrical specifications:

Input: 230V AC, 50/60Hz, maximum 3A

Output: 24V DC, 8A, maximum power 200W

Efficiency: ≥ 92%, low power consumption, low heat generation

Protection function: Built in overvoltage, undervoltage, overload, short circuit, and overheating protection to ensure the safety of peripherals and modules.

Status indication: Onboard LED indicator light, displaying power supply normal, fault, and output status for quick diagnosis.

Installation method: The IRC5 control cabinet is equipped with a standard slot for direct insertion, modular design, and supports quick replacement.

Physical parameters: size approximately 71 × 135 × 185mm, net weight 1.38kg, protection level IP20.

Environmental adaptation: Working temperature -20 ℃~+55 ℃, humidity 5% -95% (non condensing), strong resistance to electromagnetic interference.

Product status: discontinued, a classic spare part for IRC5 system, mainly for refurbished/inventory/repair parts in the market.

Application scenarios: Robot I/O system power supply, external sensor power supply, actuator drive, production line automation equipment power supply, etc.

This module has the core advantages of high efficiency, stability, multiple protections, strong adaptability, and easy installation, and is an external component of ABB IRC5 robots

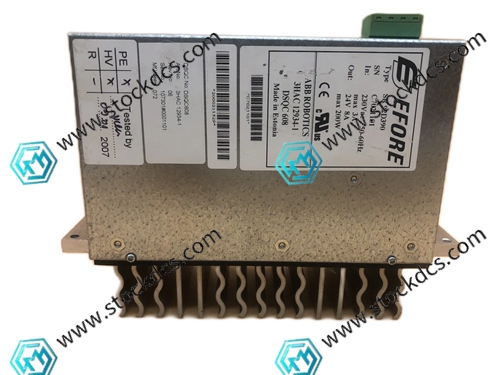

 Product imag
