3HAB8101-8/08Y servo driver

3HAB8101-8/08Y is an AC servo drive unit (model DSQC 346G) specifically designed for ABB robots. It is used in the S4C+control system to drive single axis IRB series robots and is the core component of robot motion control.

Brand affiliation: ABB robot, 3HAB series dedicated servo drive

Complete model: 3HAB8101-8/08Y, type code DSQC 346G

Adaptation system: ABB S4C+robot control cabinet

Compatible models: IRB 640/840/1400/4400/6400 and other industrial robots

Core function: Single axis servo motor closed-loop control, precise output of torque, speed, and position commands

Power supply specification: 230V AC single-phase/three-phase industrial power supply

Control interface: dedicated robot bus, supporting encoder feedback and brake control

Protection function: Multiple protection against overvoltage, overcurrent, overheating, and short circuit

Physical specifications: Compact module, suitable for installation on control cabinet backboards

Weight: Approximately 3.14kg (6.92lbs)

Product status: Original factory shutdown, mainly inventory/refurbished spare parts

Alternative model: CS-4003 new servo drive unit

Application scenarios: Robot axis control, point motion, trajectory interpolation, load dynamic adjustment

This driver is characterized by high response and high-precision control, ensuring smooth robot movement and precise positioning, and is a key spare part for the maintenance of old ABB robot systems.

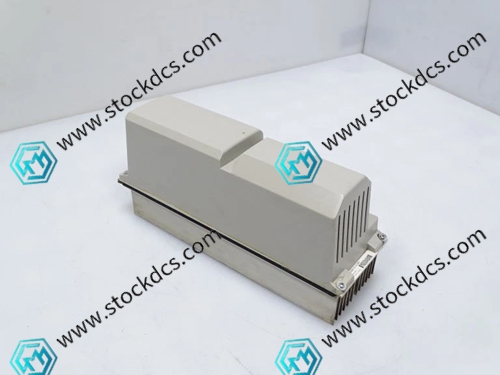

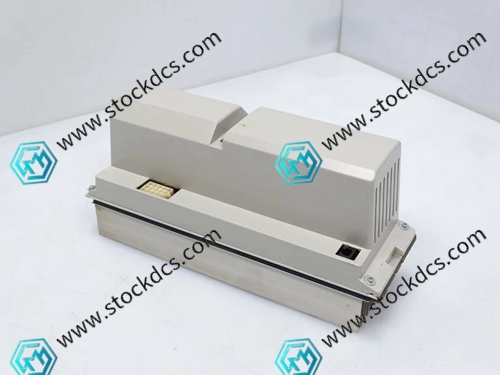

 Product imag
