MAGNETEK 1995-A-6D-P-X Control Panel Module

MAGNETEK 1995-A-6D-P-X Control Panel Module

Product Details Introduction

1、 Product Overview

MAGNETEK 1995-A-6D-P-X is a control panel module used in industrial motor control systems, typically integrated into frequency converters (such as GPD, IMPULSE, VFD series) or electric hoist control systems. This module has human-machine interface functions, providing basic local control, status display, and parameter setting interfaces.

This model generally represents:

6D: Equipped with a 6-digit digital display (such as 7-segment LED)

P: Having programming functionality

X: May represent specific panel installation types or customized interface configurations

2、 Main product features

1. Digital display function

Integrated 6-digit digital LED display screen, used for real-time display of key operating parameters such as operating status, fault codes, frequency, current, voltage, etc

Intuitive display, easy for local operators to quickly identify system status

2. Parameter setting and query function

Parameter setting, saving, and copying can be performed for frequency converter initialization or batch configuration of multiple drives

Support basic operating parameter adjustment (such as frequency setting, acceleration/deceleration time, current limiting, protection parameters)

3. Local manual control interface

Equipped with button functions (RUN, STOP, UP, DOWN, RESET, etc.), it can directly control the start stop and frequency adjustment of the driver

Can be temporarily used as the main control panel during debugging, maintenance, or when there is no upper system

4. Compatibility of panel installation

Modular design, supporting embedded or panel front mounting methods

Provide dedicated connection interfaces (such as ribbon cables, pins, or multi-core cables) for communication with the main control board or driver control terminal

5. Can be used for multiple series of compatible drives

Commonly seen in MAGNETEK's GPD503, GPD505, IMPULSE-G+, IMPULSE VG+, VGX and other series

It may also be used as a local panel in customized electric hoist control systems, bridge crane control boxes, and other equipment

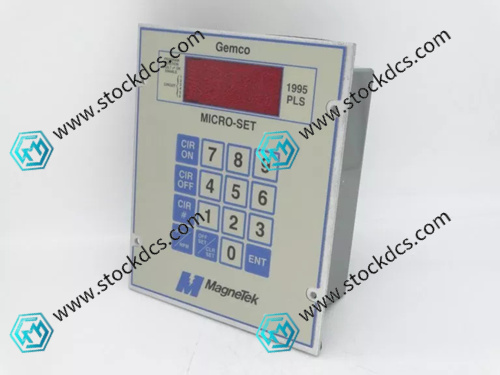

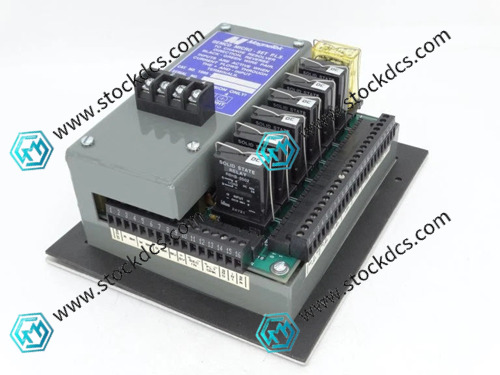

Product imag
