Gasonics C12872 Transformer

Gasonics C12872 Transformer

Product Details Introduction

product name

Gasonics C12872 Transformer

(English: Transformer)

1、 Product Overview

The Gasonics C12872 transformer is a power transformer designed specifically for Gasonics plasma equipment. Its main function is to convert the input power voltage into a stable voltage required by various control modules and execution units inside the equipment, ensuring the normal operation of the equipment. This transformer is usually installed in the power unit and is responsible for providing reliable electrical isolation and multiple outputs.

2、 Technical parameters

Input voltage: Typically 208VAC, 220VAC, or 240VAC (depending on specific equipment and regional standards)

Output voltage: Multi channel output, commonly including 24VAC, 12VAC, ± 15VAC, etc. The specific voltage level is configured according to the equipment requirements

Power capacity: typically tens to hundreds of VA, meeting the power supply needs of multiple modules

Frequency: 50Hz/60Hz compatible

Insulation grade: Industrial grade insulation, in compliance with electrical safety standards

Installation method: panel or base plate installation, with bolt fixing holes

Structural features: Closed iron core design, with good electromagnetic shielding effect

Work environment: Suitable for high temperature, high humidity, and electromagnetic interference conditions in semiconductor manufacturing environment

3、 Application scenarios

Provide stable voltage and current for control modules, drivers, sensors, and actuators of Gasonics plasma cleaning and ashing equipment

Electrical isolation to prevent fluctuations in the power grid from affecting internal signals and control accuracy of equipment

Ensure the normal operation of temperature control module, valve control module, display module, etc. in the equipment

Support multiple power supply requirements for devices and achieve system level power distribution

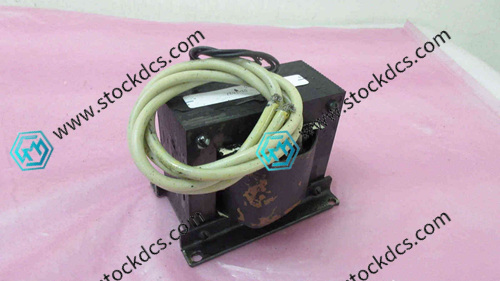

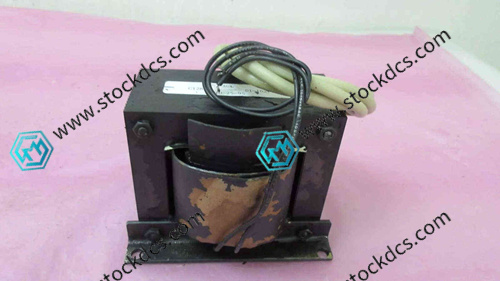

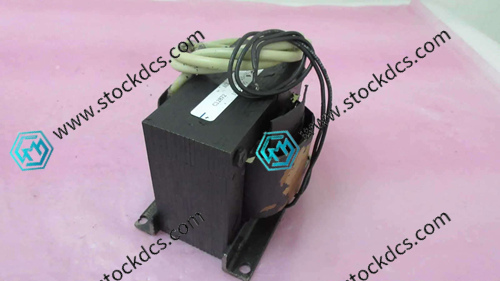

Product imag
