Tokyo Electron 1D08-000142-51 Interface PCB Board

Tokyo Electron 1D08-000142-51 Interface PCB Board

Product Details Introduction

The Tokyo Electron 1D08-000142-51 interface PCB board is a specialized signal interface circuit board used in TEL semiconductor equipment, mainly responsible for signal connection, transfer, and adaptation tasks between different modules inside the equipment. This type of card is often one of the key communication hubs in system control or process modules.

1、 Product Function Overview

Type: Interface PCB board

Function:

Realize signal interaction between the main control system and sub modules;

Perform signal isolation, format conversion, status detection and other processing;

As an I/O interface, it connects with external actuators, sensors, solenoid valves, and drivers.

2、 Main application areas

Semiconductor equipment module connection

Establish a signal bridge between the main control board and the cavity, air circuit, and heating/cooling system;

Support high-speed, low interference data or control signal transmission.

I/O control system

As an input/output interface board, connect various signal sources on the device (such as limit switches, photoelectric sensors, valve drive circuits);

Implement functions such as dry contact signal acquisition, output relay drive, and level conversion.

Communication signal adaptation and distribution

Compatible with signal systems such as RS-232, RS-485, TTL, CAN, etc;

Support isolation or relay between the system bus and peripherals.

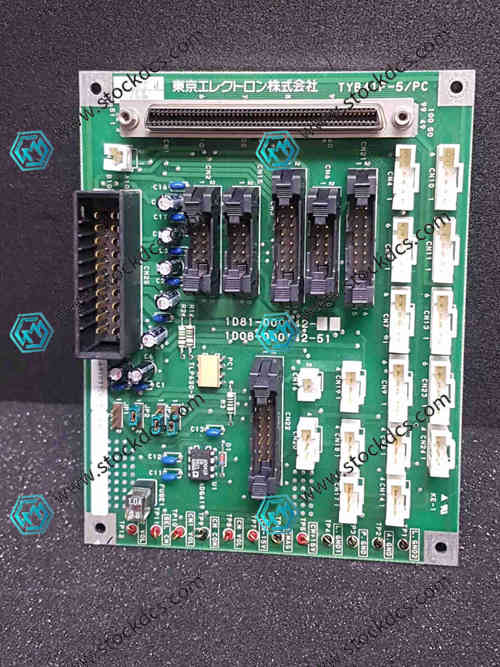

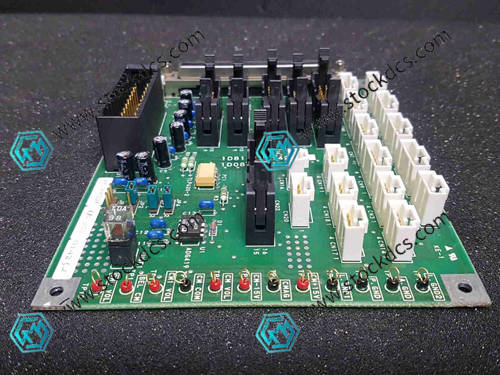

Product imag
