HONEYWELL MC-PDIY22 80363972-150 Digital Input Module

HONEYWELL MC-PDIY22 80363972-150 Digital Input Module

Product Details Introduction

1、 Basic Information

Product model: MC-PDIY22

Part number: 80363972-150

Manufacturer: Honeywell

Module type: Digital Input Module

Series affiliation: One of the components of the control system for Expert PKS/C300

Installation Platform: Generally used for Honeywell control cabinet I/O backplane systems (such as Universal I/O architecture)

2、 Functional characteristics

Number of channels:

There are a total of 16 digital input channels

Each channel is an independent isolated input, supporting status monitoring

Input type:

DC digital input

Usually supports 24V DC signal

Support dry contact or active contact input mode (configuration required)

Channel isolation:

There is electrical isolation between channels, as well as between channels and the system bus

Enhance anti-interference capability, suitable for complex industrial site environments

Status indication:

The front panel is equipped with LED indicator lights, which can display the ON/OFF status of each channel in real time

Easy to debug and troubleshoot

3、 Electrical performance

Working voltage range: typically 18-30V DC (nominal 24V DC)

Input impedance: High input impedance design, suitable for a wide range of input devices

Channel scanning time: high-speed sampling to meet the requirements of real-time control systems

Power consumption: Low power design, suitable for parallel deployment of large-scale I/O modules

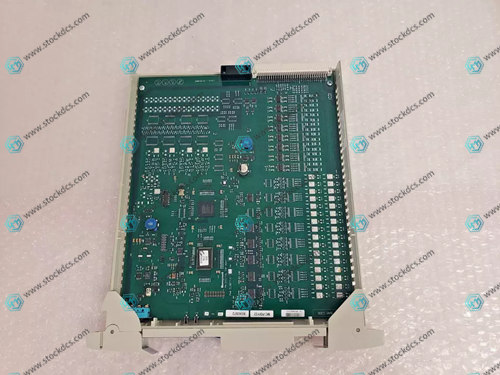

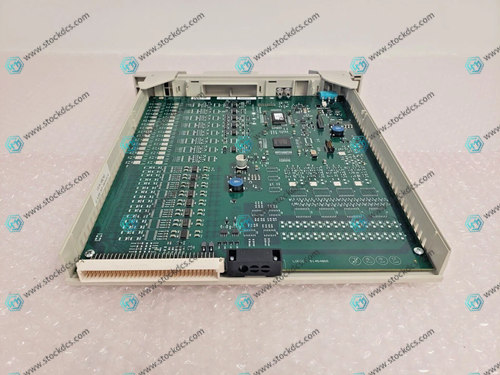

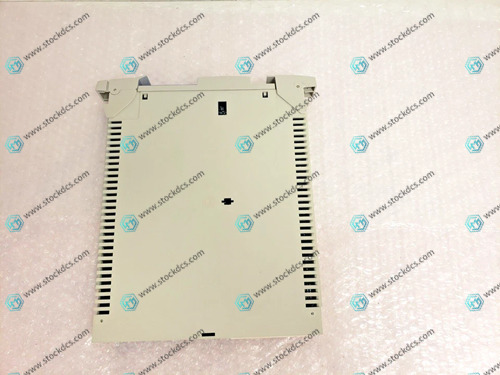

Product imag
